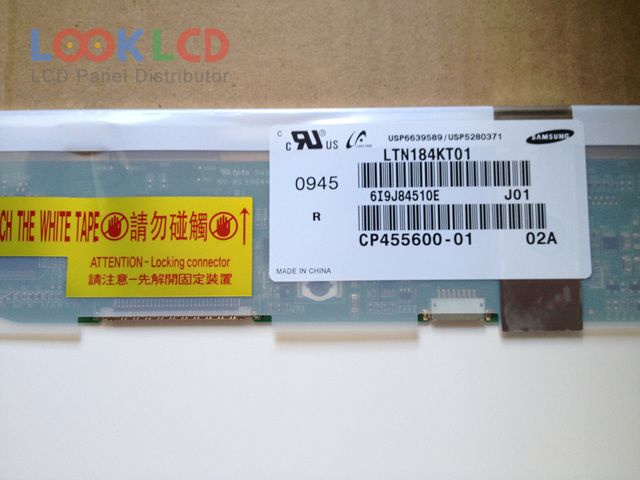

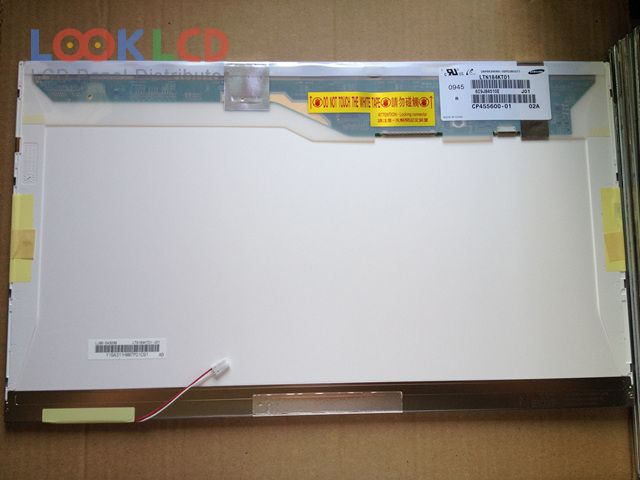

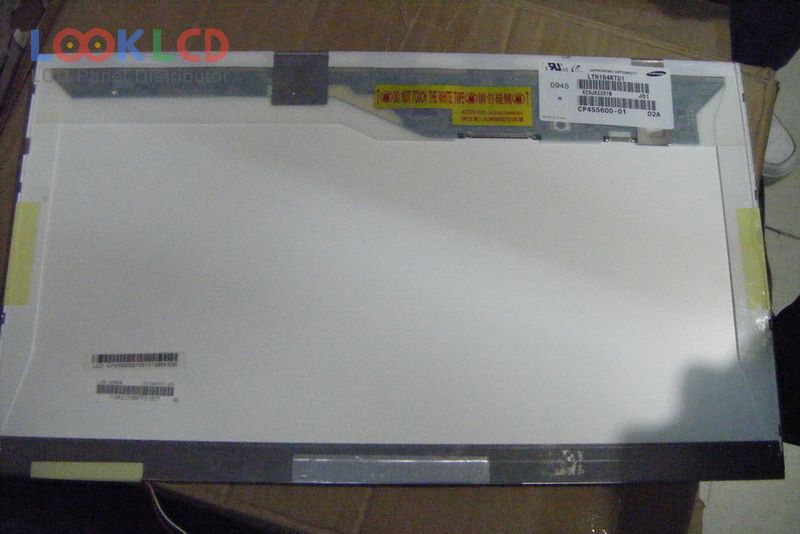

| PartNumber | LTN184KT01-J01 |
| Brand | Samsung |
| Size | 18.4 |
| Application | NBPC |
| Resolution | 1680(RGB)×945 , HD+ |
| Composition | LCM |
| Brightness | |
| CR | |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN184KT01-J01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 18.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 408.24×229.635 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | |
| Contrast Ratio | |
| Display Colors | 262K (6-bit) |
| Response Time | |
| Viewing Angle | |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFL |
| Signal Interface | LVDS (2 ch, 6-bit) |
