| PartNumber | QD15XL06 Rev.01 |
| Brand | QDI |
| Size | 15.0 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 160 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | QDI |
| Panel Model | QD15XL06 Rev.01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 317.3×242×5.9 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare, Hard coating (3H), Reflection 5.0% (Max.) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 8/17 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |

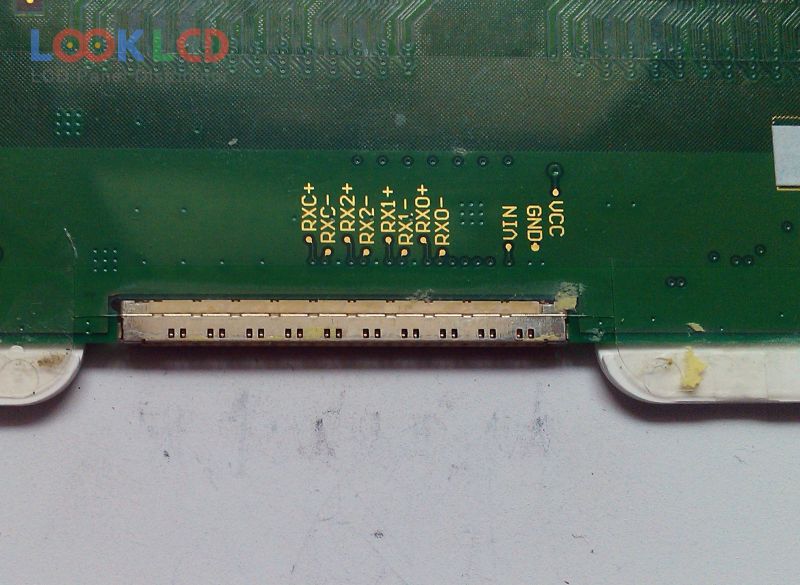

| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| AA150XN03 | Mitsubishi | 15.0 | 1024×768 |
| G150X1-L02 | Innolux | 15.0 | 1024×768 |
| G150XG01 V1 | AUO | 15.0 | 1024×768 |
| G150XG03 V0 | AUO | 15.0 | 1024×768 |
| HM150X01-101 | BOE | 15.0 | 1024×768 |
| LM150X08-TLB1 | LG Display | 15.0 | 1024×768 |
| LQ150X1DWF1 | SHARP | 15.0 | 1024×768 |
| LTN150XB-L02 | Samsung | 15.0 | 1024×768 |
| QD15XL06 Rev.01 | QDI | 15.0 | 1024×768 |
| TM150XG-A02-01 | SANYO | 15.0 | 1024×768 |
| B133EW06 V0 | AUO | 13.3 | 1280×800 |
| B133XW07 V2 | AUO | 13.3 | 1366×768 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| HT14P12-100 | HYDIS | 14.1 | 1400×1050 |
| LP133WX1-TLN2 | LG Display | 13.3 | 1280×800 |
| LP133WX3-TLA6 | LG Display | 13.3 | 1280×800 |
| LP140WH2-TLQ1 | LG Display | 14.0 | 1366×768 |
| LTN133AT16-L01 | Samsung | 13.3 | 1280×800 |
| LTN154X2-L02 | Samsung | 15.4 | 1280×800 |
| N154Z3-L01 | Innolux | 15.4 | 1680×1050 |
