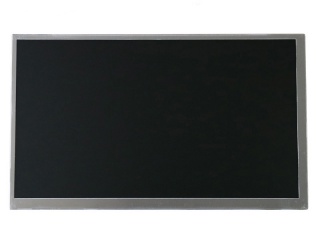

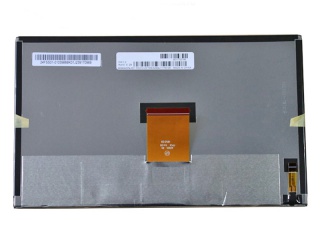

| PartNumber | M090AWP4 R0 |
| Brand | IVO |
| Size | 9.0 |
| Application | Outdoor High Brightness Automotive Display |
| Resolution | 800(RGB)×480, WVGA, 104PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 750 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K |
| Backlight | 8S3P |
| Interface | Parallel |
| Panel Brand | IVO |
| Panel Size | 9.0" |
| Display Area | 198(W)×112.08(H) mm |
| Outline Size | 210.82(W)×126.96(H) ×6.4(D) mm |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 70% NTSC |
| Frequency | 60Hz |
| Panel Weight | 251g (Max.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| Input Voltage | 3.3/11.6/22/-7V (Typ.)(VCC/VDDA/VGH/VGL) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Panel Model | M090AWP4 R0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 200.2(W)×114.28(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12 (Typ.)(Tr+Td) |
| Lamp Type | 8S3P WLED , 30K hours , Without Driver |
| Touch Screen | Without |
