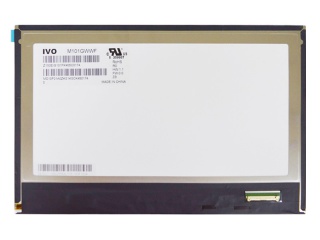

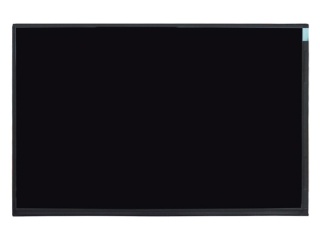

| PartNumber | M101GWWF R0 |
| Brand | IVO |
| Size | 10.1 |
| Application | Laptop |
| Resolution | 1280×800 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | M101GWWF R0 |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×800 [WXGA] 149PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 216.96(H)×135.6(V) mm |
| Outline Dim. | 229.46(H)×149.1(V) ×4.56(D) mm |
| Bezel Area | - |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED , 25K hours , With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
