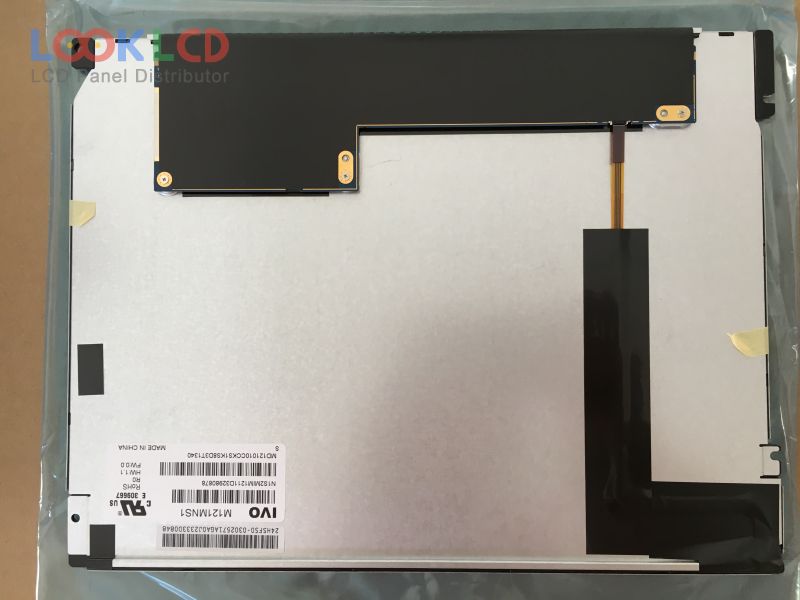

| PartNumber | M121MNS1 R1 |
| Brand | IVO |
| Size | 12.1 |
| Application | IA |
| Resolution | 800(RGB)×600 , SVGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | IVO |
| Panel Model | M121MNS1 R1 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 246×184.5 mm |
| Outline | 276×209×9.6 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193155% |
| Response Time | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| AA150XN01 | Mitsubishi | 15.0 | 1024×768 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| AM-800600M3TNQW-01H-F | AMPIRE | 8.4 | 800×600 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| EL320.240.36 ET | Lumineq | 5.7 | 320×240 |
| G104XVN01.0 | AUO | 10.4 | 1024×768 |
| LQ10D341 | SHARP | 10.4 | 640×480 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| NL6448BC26-27 | NLT | 8.4 | 640×480 |
| NL8060BC26-30D | NLT | 10.4 | 800×600 |
