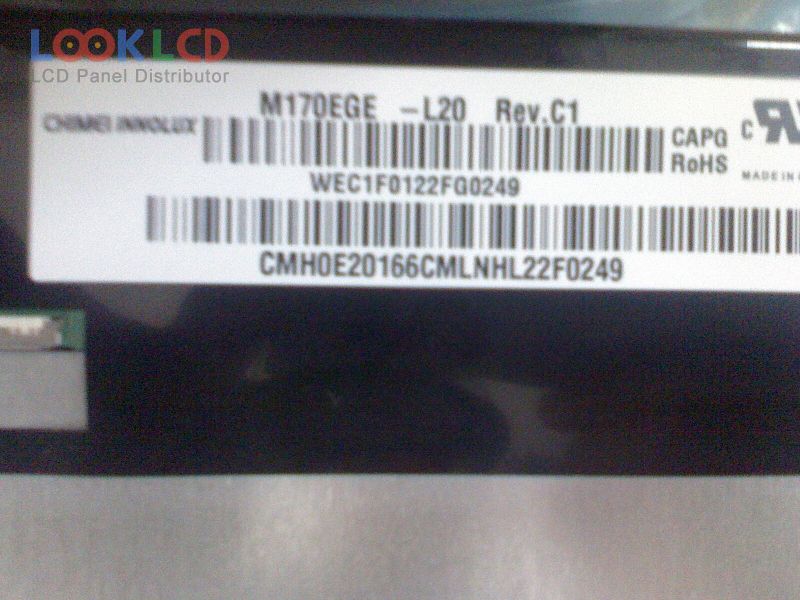

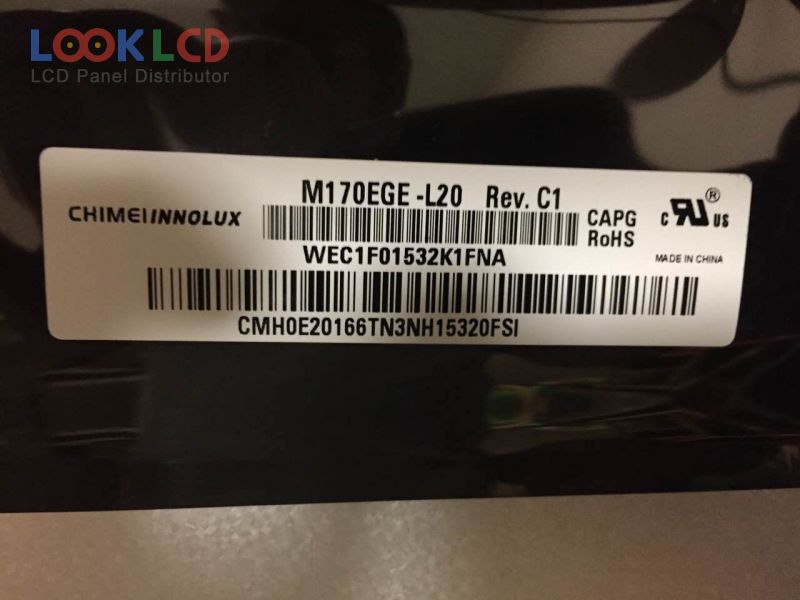

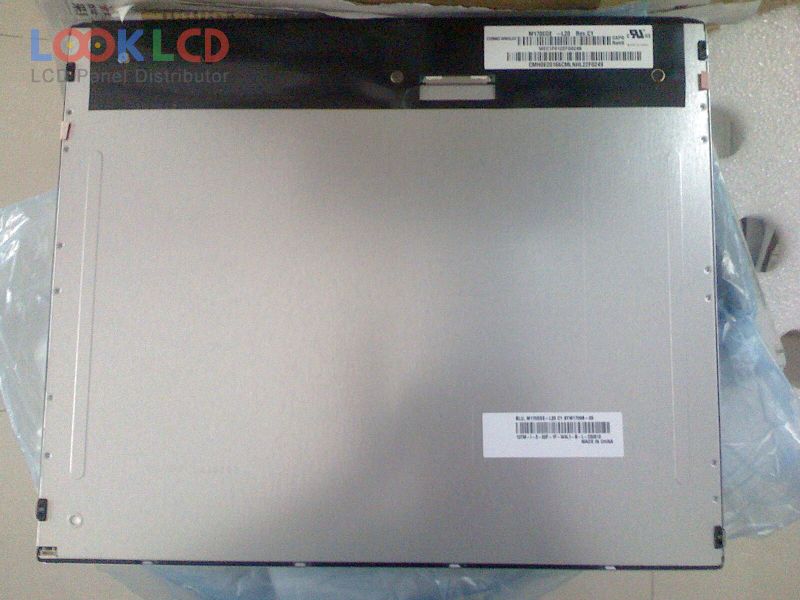

| PartNumber | M170EGE-L20 |
| Brand | Innolux |
| Size | 17.0 |
| Application | IA |
| Resolution | 1280(RGB)×1024 , SXGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | M170EGE-L20 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 337.92×270.336 mm |
| Outline | 358.5×296.5×11 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Response Time | 1/4 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 12S4PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
