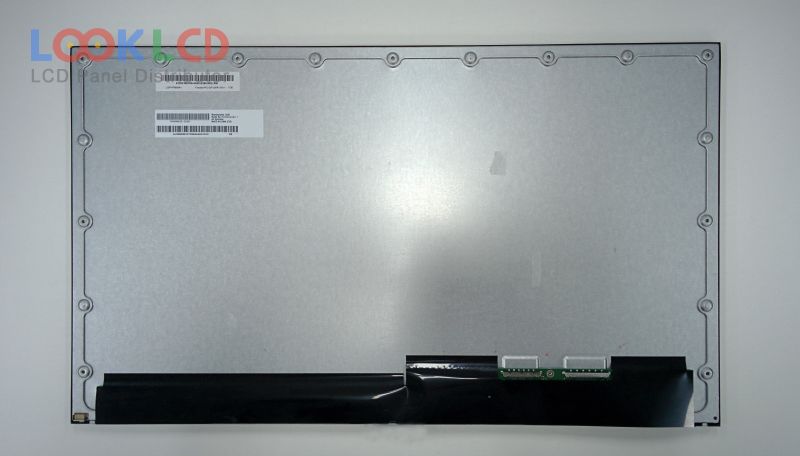

| PartNumber | M238DAN01.1 Q0 |
| Brand | AUO |
| Size | 23.8 |
| Application | DMPC |
| Resolution | 2560(RGB)×1440 , Quad-HD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | M238DAN01.1 Q0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 23.8 inch |
| Display Mode | AHVA, Normally Black, Transmissive |
| Active Area | 526.85×296.35 mm |
| Outline | 534.74×213.26×12.3 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), sRGB100% |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 20S4PWLEDWithout Driver |
| Signal Interface | LVDS (4 ch, 8-bit), 92 pins |
| Input Voltage | 5.0V (Typ.) |
