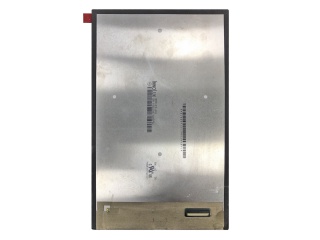

| PartNumber | N080JCE-G41 Rev.A2 |
| Brand | Innolux |
| Size | 8.0 |
| Application | Pad & Tablet |
| Resolution | 1200×1920 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | 7S3P WLED , 15K hours , No Driver |
| Interface | MIPI |
| Manufacturer | Innolux |
| Model Name | N080JCE-G41 Rev.A2 |
| Screen Size | 8.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1200(RGB)×1920 (WUXGA) 283PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 107.64 × 172.224 (H×V) |
| Outline(mm) | 114.6 × 184.05 × 3.95 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Mass | 75.0g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| A080SN03 V0 | AUO | 8.0 | 800×600 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| B080UAN01.4 | AUO | 8.0 | 1200×1920 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| LQ080Y5CGQ2 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ03 | SHARP | 8.0 | 800×480 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| ZJ080NA-08A | Innolux | 8.0 | 1024×600 |
