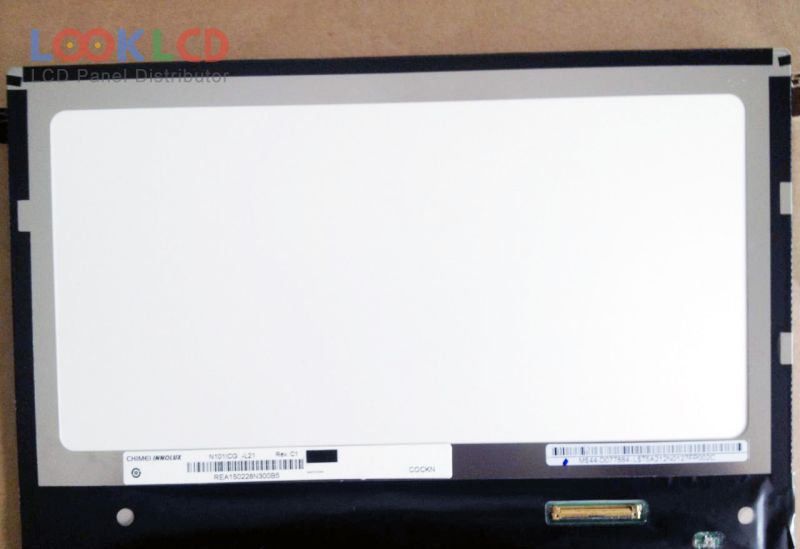

| PartNumber | N101ICG-L21 Rev.C1 |
| Brand | Innolux |
| Size | 10.1 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CMO |
| Panel Model | N101ICG-L21 Rev.C1 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | AAS, Normally Black, Transmissive |
| Active Area | 216.96×135.6 mm |
| Outline | 227.42×147.69×4.85 mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193150% |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3 stringsWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| VVX10F002A00 | Panasonic | 10.1 | 1920×1200 |
| B101EW04 V0 | AUO | 10.1 | 1280×800 |
| HSD100PXN1-A00-C40 | HannStar | 10.0 | 1024×768 |
| HSD101PWW1-A00 | HannStar | 10.1 | 1280×800 |
| HT10X21-311 | HYDIS | 10.4 | 1024×768 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LTL070NL01-002 | Samsung | 7.0 | 1024×600 |
| LTN121AP05-302 | Samsung | 12.1 | 1280×800 |
| TFTMD089030 | JDI | 8.9 | 2560×1600 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
