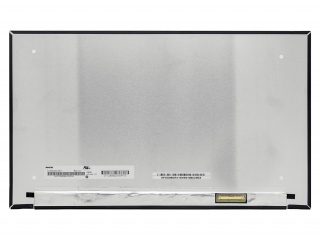

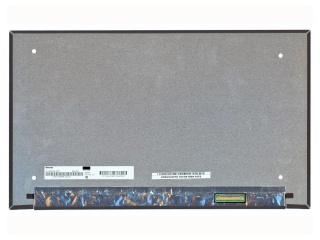

N133DCE-G61


Brand
Innolux
Size
13.3
Application
Laptop
Resolution
3840×2160
Composition
a-Si TFT-LCD, LCM
Brightness
CR
1500:1
Colors
16.7M
Backlight
WLED
Interface
In Stock
8766
Specifications
PartNumber N133DCE-G61
BrandInnolux
Size13.3
ApplicationLaptop
Resolution3840×2160
Compositiona-Si TFT-LCD, LCM
Brightness
CR1500:1
Colors16.7M
BacklightWLED
Interface
ModelN133DCE-G61 (CMN1381)
Diagonal Size13.3 inch
Typea-Si TFT-LCD, LCM
Pixel Format3840(RGB)×2160  [UHD]  332PPI
ConfigurationRGB Vertical Stripe
Active Area293.76(H)×165.24(V) mm
Outline Dim.299.46(H)×176.94(V) ×4(D) mm
Bezel Area-
TreatmentGlare (Haze 0%), Hard coating (3H)
Luminance500 cd/m² (Typ.)
Contrast Ratio1500:1 (Typ.) (TM)
View DirectionSymmetry
Response Time15/14 (Typ.)(Tr/Td)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Operating ModeAAS, Normally Black, Transmissive
Support Color16.7M   100% sRGB
Light SourceWLED , 15K hours , With LED Driver
Form StyleSlim (PCBA Bent, T≤3.0mm)
Designed ForLaptop
Frame Rate60Hz
Touch PanelWithout
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
