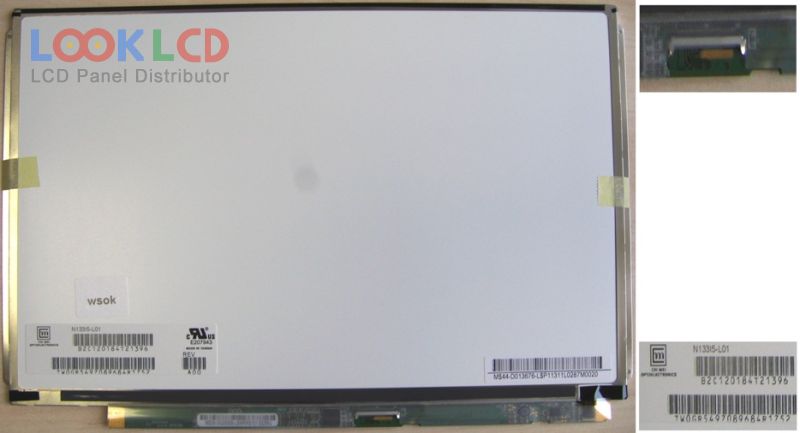

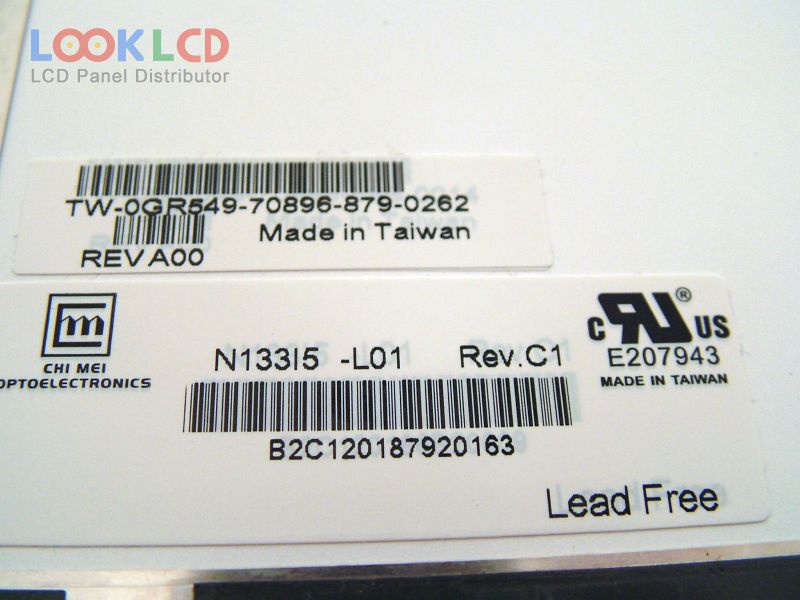

| PartNumber | N133I5-L01 |
| Brand | Innolux |
| Size | 13.3 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CMO |
| Panel Model | N133I5-L01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 13.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 286.08×178.8 mm |
| Outline | 304×202.5×3.67 mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 6/14 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S6PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
