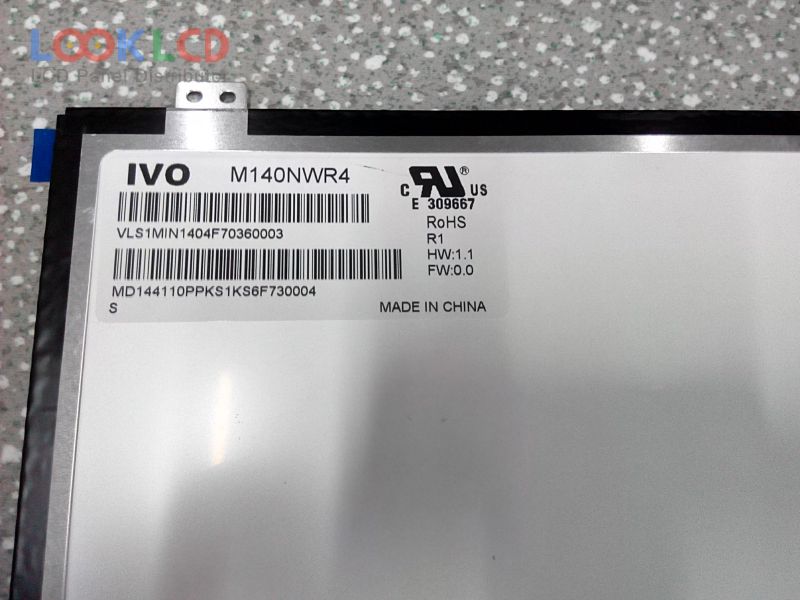

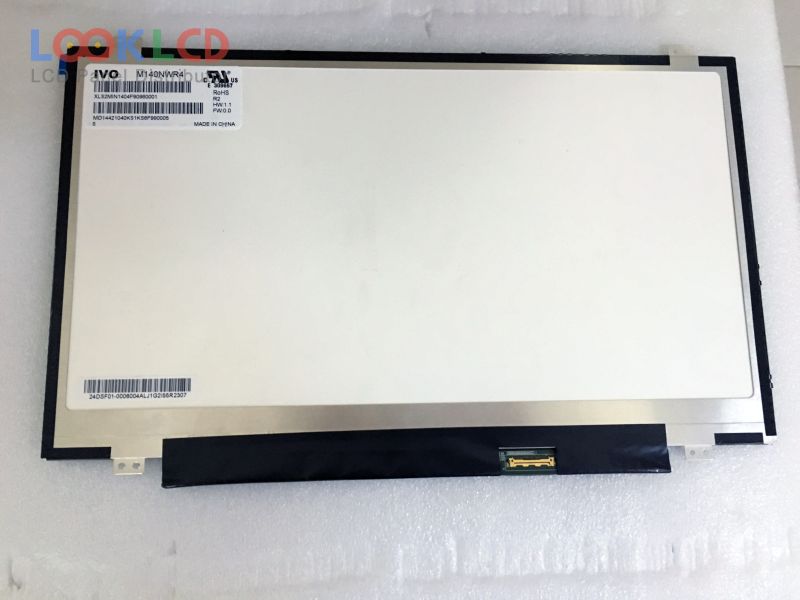

| PartNumber | M140NWR4 R2 |
| Brand | IVO |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | IVO |
| Panel Model | M140NWR4 R2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.399×173.952 mm |
| Outline | 320.9×205.6×3.6 mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |

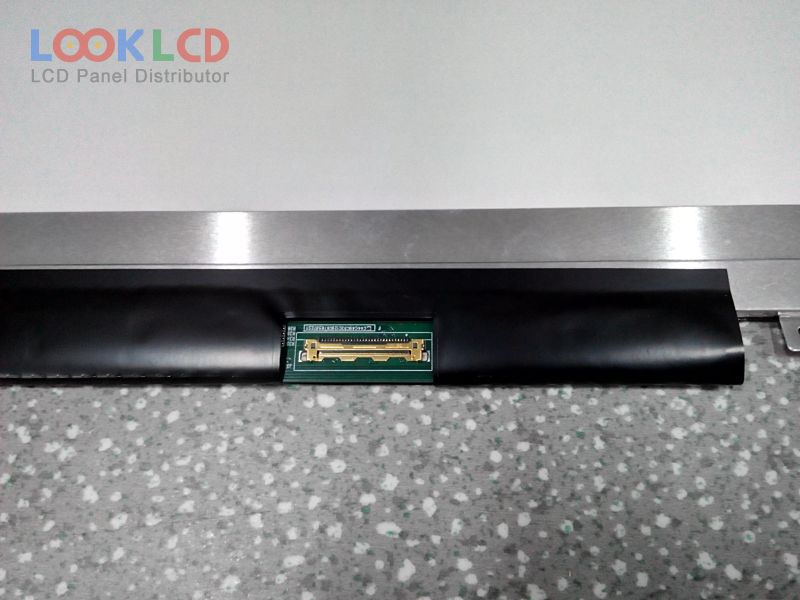

| Signal Interface | eDP (1 Lane), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B140XTN03.5 | AUO | 14.0 | 1366×768 |
| B140XW01 V0 | AUO | 14.0 | 1366×768 |
| LP140WH2-TLA1 | LG Display | 14.0 | 1366×768 |
| LTN140AT02-G01 | Samsung | 14.0 | 1366×768 |
| LTN140AT20-401 | Samsung | 14.0 | 1366×768 |
| M140NWR1 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R1 | IVO | 14.0 | 1366×768 |
| M140NWR2 R2 | IVO | 14.0 | 1366×768 |
| M140NWR4 R2 | IVO | 14.0 | 1366×768 |
| B141XG09 V3 | AUO | 14.1 | 1024×768 |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| LP101WH2-TLA2 | LG Display | 10.1 | 1366×768 |
| LTM09C362Z | TOSHIBA | 8.9 | 1024×600 |
| LTN141AT16-001 | Samsung | 14.1 | 1280×800 |
| LTN150XB-L02 | Samsung | 15.0 | 1024×768 |
| LTN154CT02-001 | Samsung | 15.4 | 1920×1200 |
| LTN156AT05-S01 | Samsung | 15.6 | 1366×768 |
| N133B6-L02 | Innolux | 13.3 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
