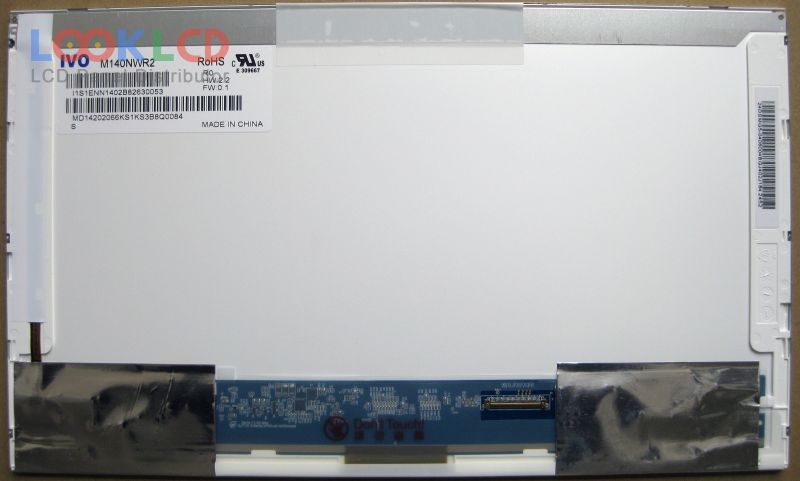

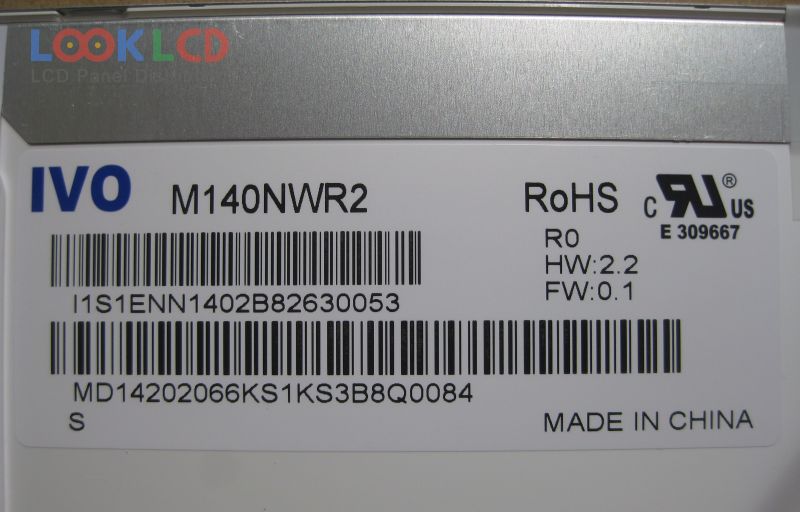

| PartNumber | M140NWR2 R0 |
| Brand | IVO |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | IVO |
| Panel Model | M140NWR2 R0 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.399×173.952 mm |
| Outline | 323.5×192×5.2 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |

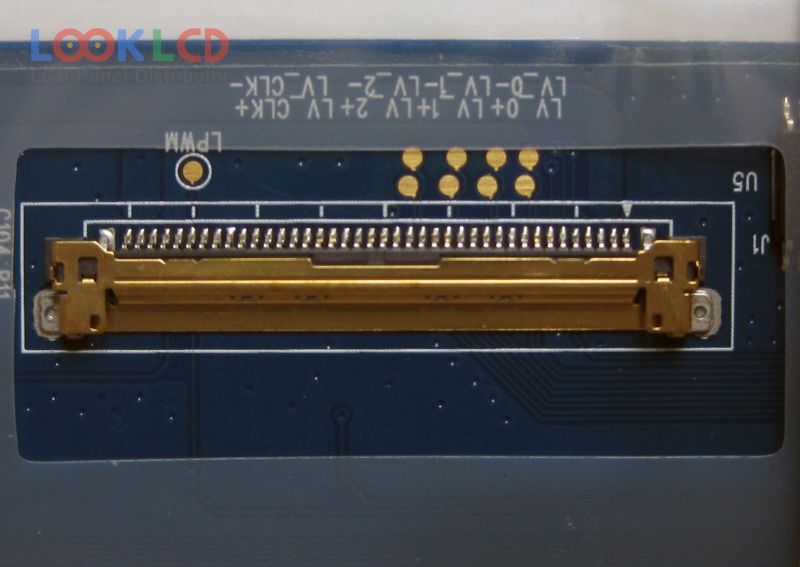

| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| B140RW03 V1 | AUO | 14.0 | 1600×900 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LTN140HL02-201 | Samsung | 14.0 | 1920×1080 |
| M140NWR1 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R1 | IVO | 14.0 | 1366×768 |
| M140NWR2 R2 | IVO | 14.0 | 1366×768 |
| M140NWR4 R2 | IVO | 14.0 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| B154EW01 V3 | AUO | 15.4 | 1280×800 |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| LP133WH2-TLM2 | LG Display | 13.3 | 1366×768 |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LP173WF2-TPB1 | LG Display | 17.3 | 1920×1080 |
| LT121SS-124 | Samsung | 12.1 | 800×600 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN160HT03-001 | Samsung | 16.0 | 1920×1080 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
