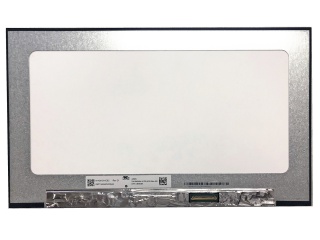

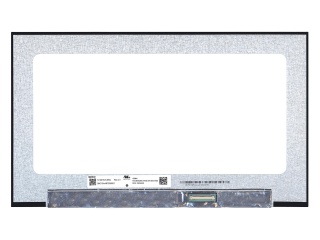

N140HCN-E5C


Brand
Innolux
Size
14.0
Application
Laptop
Resolution
1920×1080
Composition
a-Si TFT-LCD, LCM
Brightness
CR
1000:1
Colors
262K
Backlight
WLED
Interface
In Stock
18051
Specifications
PartNumber N140HCN-E5C
BrandInnolux
Size14.0
ApplicationLaptop
Resolution1920×1080
Compositiona-Si TFT-LCD, LCM
Brightness
CR1000:1
Colors262K
BacklightWLED
Interface
ModelN140HCN-E5C (CMN14E9)
Diagonal Size14.0 inch
Typea-Si TFT-LCD, LCM
Pixel Format1920(RGB)×1080  [FHD]  157PPI
ConfigurationRGB Vertical Stripe
Active Area309.31(H)×173.99(V) mm
Outline Dim.315.81(H)×186.09(V) ×5.25(D) mm
Bezel Area-
TreatmentAntiglare, Hard coating (3H)
Luminance220 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.) (TM)
View DirectionSymmetry
Response Time11/14 (Typ.)(Tr/Td)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Operating ModeAAS, Normally Black, Transmissive
Support Color262K   45% NTSC
Light SourceWLED  [11S3P] , 15K hours , With LED Driver
Form StyleSlim (PCBA Bent, T≤3.0mm)
Designed ForLaptop
Frame Rate60Hz
Touch PanelOn-Cell Touch
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
