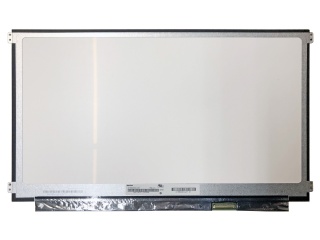

| PartNumber | N156DCE-GA1 |
| Brand | Innolux |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 3840(RGB)×2160, UHD, 283PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | Innolux |
| Panel Model | N156DCE-GA1 (CMN15E1) |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.218(W)×193.622(H) mm |
| Bezel Opening | - |
| Outline Size | 367.98(W)×218.8(H) ×3.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 16/14 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (4 Lanes) , eDP1.2 , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
