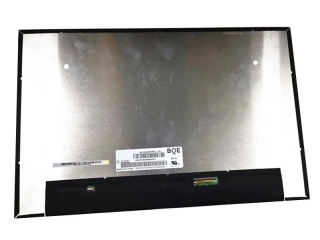

| PartNumber | NE160QDM-N63 |
| Brand | BOE |
| Size | 16.0 |
| Application | Laptop |
| Resolution | 2560(RGB)×1600, WQXGA, 188PPI |
| Composition | Oxide TFT-LCD , LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | 10S6P |
| Interface | |
| Panel Brand | BOE |
| Panel Size | 16.0" |
| Display Area | 344.678(W)×215.424(H) mm |
| Outline Size | 349.68(W)×224.42(H) ×4.6(D) mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 100% sRGB |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Panel Model | NE160QDM-N63 (BOE09BA) |
| Panel Type | Oxide TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 20 (Typ.)(Tr+Td) |
| Lamp Type | 10S6P WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
