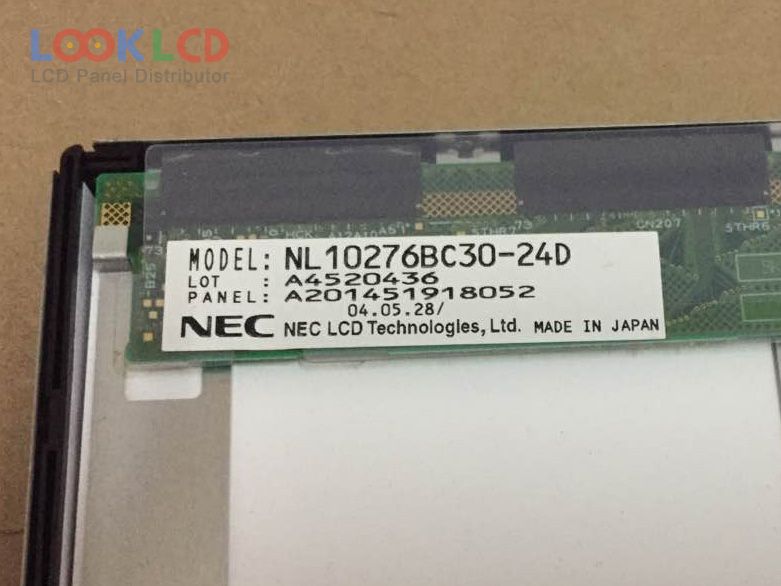

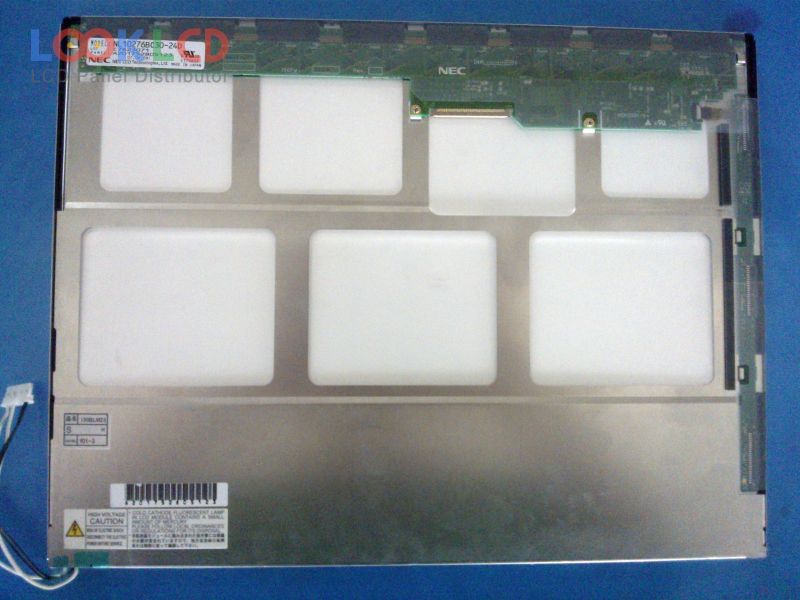

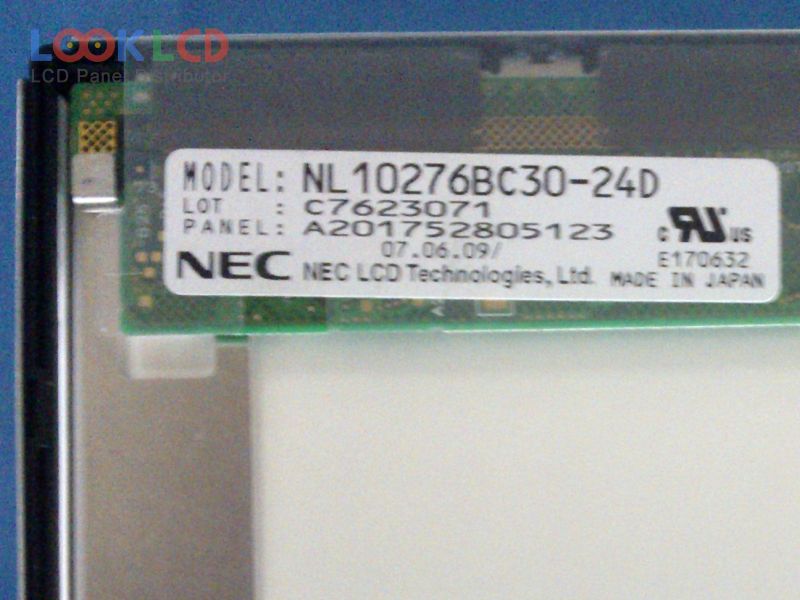

| PartNumber | NL10276BC30-24D |
| Brand | NLT |
| Size | 15.0 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 320 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | NEC |
| Panel Model | NL10276BC30-24D |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 317.3×242.2×10 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Clear, Hard coating (2H), Antireflection |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193172% |
| Response Time | TBD |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
