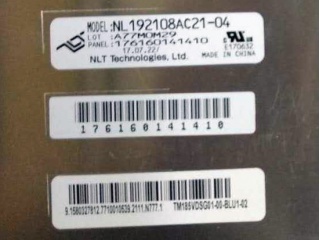

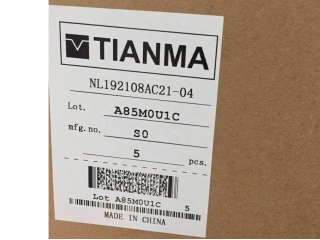

| PartNumber | NL192108AC21-04 |
| Brand | NLT |
| Size | 18.5 |
| Application | Industrial |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED , 50K hours , With LED Driver |
| Interface | LVDS |
| Manufacturer | NLT |
| Screen Size | 18.5 inch |
| Pixel Number | 1920(RGB)×1080 (FHD) 119PPI |
| Active Area(mm) | 408.96 × 230.04 (H×V) |
| Bezel Area(mm) | 413.4 × 234.0 (H×V) |
| Luminance | 400 cd/m² (Typ.) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 72% NTSC |
| Mass | 1.55/1.70Kgs (Typ./Max.) |
| Refresh Rate | 60Hz |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Model Name | NL192108AC21-04 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 430.4 × 254.6 × 14 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Response | 12/13 (Typ.)(Tr/Td) ms |
| Work Mode | UA-SFT, Normally Black, Transmissive |
| Used for | Industrial |
| Touchscreen | Without |
