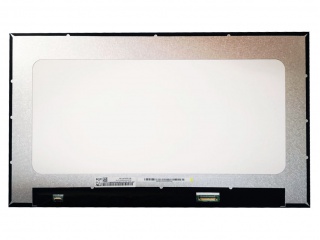

| PartNumber | NT156WHM-N46 |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1366×768 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 15.6 inch |
| Pixel Format | 1366(RGB)×768 [WXGA] 100PPI |
| Active Area | 344.232(H)×193.536(V) mm |
| Bezel Area | - |
| Luminance | 220 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Support Color | 262K 45% NTSC |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Frame Rate | 60Hz |
| Model | NT156WHM-N46 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 350.73(H)×205.64(V) ×5.4(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [9S4P] , 15K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
