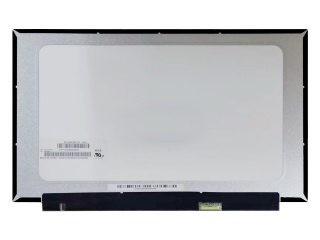

| PartNumber | NT156WHM-T02 |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1366×768 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | 9S4P WLED , 15K hours , With LED Driver |
| Interface | |
| Manufacturer | BOE |
| Model Name | NT156WHM-T02 (BOE0816) |
| Screen Size | 15.6 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 100PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.232 × 193.536 (H×V) |
| Outline(mm) | 350.96 × 216.75 × 3.4 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 12 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
