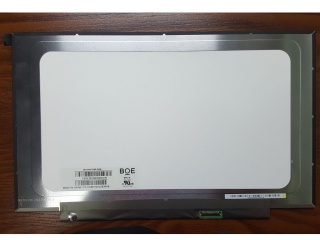

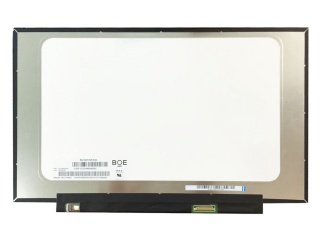

| PartNumber | NV140FHM-N4B |
| Brand | BOE |
| Size | 14.0 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 157PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | 8S4P |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Size | 14.0" |
| Display Area | 309.31(W)×173.99(H) mm |
| Outline Size | 315.812(W)×197.48(H) ×3(D) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K 46% NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | NV140FHM-N4B (BOE072C) |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Lamp Type | 8S4P WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
| B140XW01 V8 | AUO | 14.0 | 1366×768 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| HT140WXB-501 | BOE | 14.0 | 1366×768 |
| LP140WH2-TLM1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LTN140HL02-201 | Samsung | 14.0 | 1920×1080 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
| N140FGE-LA2 | Innolux | 14.0 | 1600×900 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
