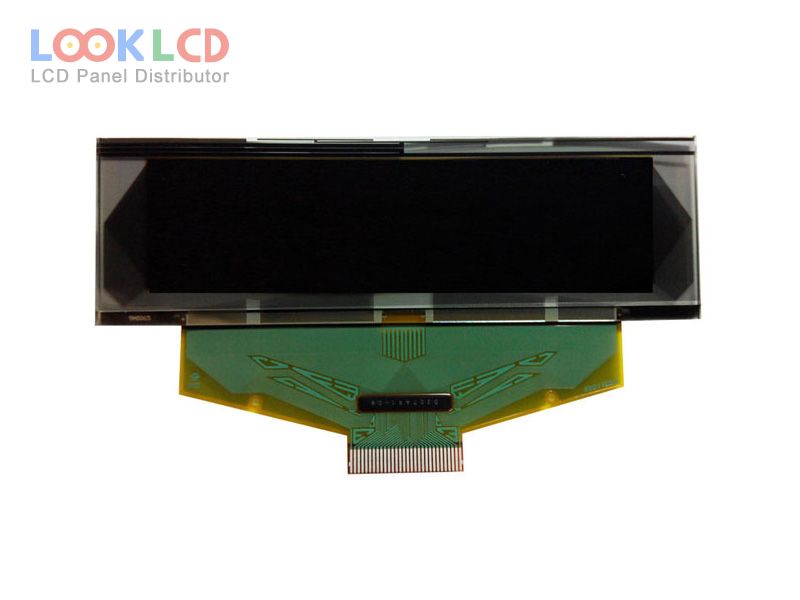

| PartNumber | OEL9M0065-Y-E |
| Brand | Other |
| Size | 2.7 |
| Application | IA |
| Resolution | 256×64 |
| Composition | OLED |
| Brightness | |
| CR | 10000:1 |
| Colors | Grayscale(Y) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | TRULY |
| Panel Model | OEL9M0065-Y-E |
| Panel Type | PM-OLED , OLED |
| Panel Size | 2.7 inch |
| Active Area | 66.53×16.61 mm |
| Outline | 82×25.5×1.6 mm |
| Surface | |
| Contrast Ratio | 10000 : 1 (Min.) |
| Display Colors | Grayscale(Y) (4-bit) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 100Hz |
| Driver IC | COF Built-in SSD1322UR1 |
| Signal Interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
