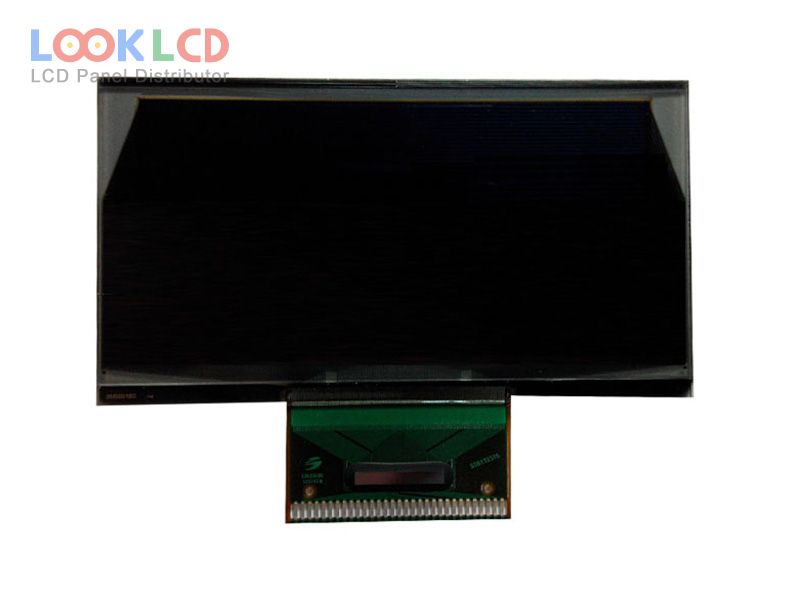

OEL9M5001-Y-E

OEL9M5001-Y-E
OEL9M5001-Y-E thumb
Brand
Other
Size
2.7
Application
IA
Resolution
128×64
Composition
OLED
Brightness
80
CR
10000:1
Colors
Grayscale(Y)
Backlight
self
Interface
CPU/SPI
In Stock
10467
Specifications
PartNumber OEL9M5001-Y-E
BrandOther
Size2.7
ApplicationIA
Resolution128×64
CompositionOLED
Brightness80 cd/m² (Typ.)
CR10000:1
ColorsGrayscale(Y)
Backlightself
InterfaceCPU/SPI
Panel BrandTRULY
Panel ModelOEL9M5001-Y-E
Panel Type PM-OLED , OLED
Panel Size2.7 inch
Active Area61.41×30.69 mm
Outline73×40.24×2.15 mm
Surface
Contrast Ratio10000 : 1 (Min.)
Display ColorsGrayscale(Y) (4-bit)
Viewing Angle80/80/80/80 (Min.)(L/R/U/D)
Frequency100Hz
Driver ICTAB Built-in SSD1325T6R1
Signal Interface8-bit 6800/8080 parallel, SPI, 30 pins
Input Voltage3.0/13.0V (Typ.)(VDD/VCC)
Family Model
OEL9M5001-B-E Other 2.7 128×64
OEL9M5001-G-E Other 2.7 128×64
OEL9M5001-R-E Other 2.7 128×64
OEL9M5001-W-E Other 2.7 128×64
OEL9M5001-Y-E Other 2.7 128×64
OEL9M5003-B-E Other 2.7 128×64
OEL9M5003-G-E Other 2.7 128×64
OEL9M5003-R-E Other 2.7 128×64
OEL9M5003-W-E Other 2.7 128×64
OEL9M5003-Y-E Other 2.7 128×64
