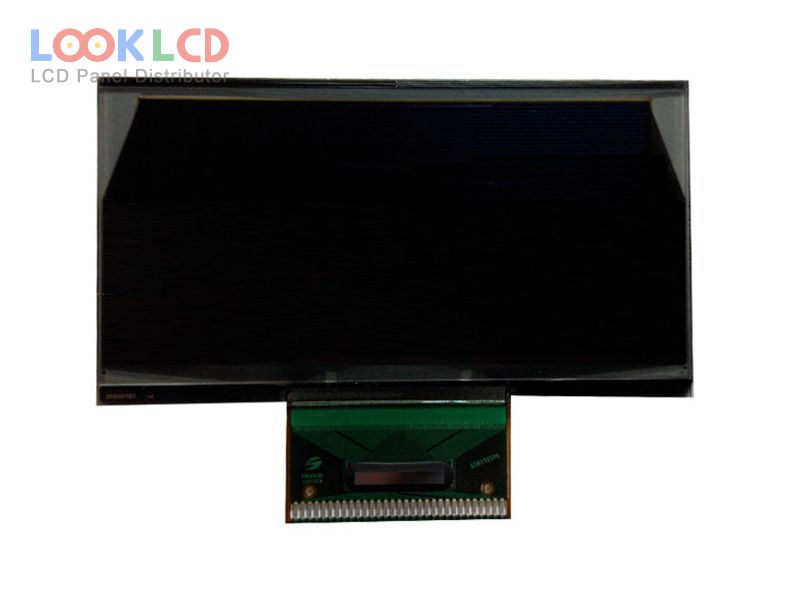

| PartNumber | OEL9M5003-R-E |
| Brand | Other |
| Size | 2.7 |
| Application | |
| Resolution | 128×64 |
| Composition | OLED |
| Brightness | |
| CR | 10000:1 |
| Colors | Mono(Red) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | TRULY |
| Panel Model | OEL9M5003-R-E |
| Panel Type | PM-OLED , OLED |
| Panel Size | 2.7 inch |
| Active Area | 61.41×30.69 mm |
| Outline | 73×40.24×2.15 mm |
| Surface | |
| Contrast Ratio | 10000 : 1 (Min.) |
| Display Colors | Mono(Red) (1-bit) |
| Viewing Angle | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequency | 100Hz |
| Driver IC | TAB Built-in SSD1305T7R1 |
| Signal Interface | 8-bit 6800/8080 parallel, SPI, 30 pins |
| Input Voltage | 3.0/13.0V (Typ.)(VDD/VCC) |
