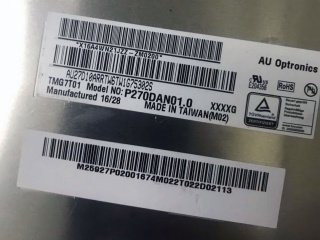

| PartNumber | P270DAN01.0 |
| Brand | AUO |
| Size | 27.0 |
| Application | Digital Signage |
| Resolution | 2560×1440 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 1.07B |
| Backlight | GB-LED , 30K hours , No Driver |
| Interface | LVDS |
| Manufacturer | AUO |
| Screen Size | 27.0 inch |
| Pixel Number | 2560(RGB)×1440 (Quad-HD) 108PPI |
| Active Area(mm) | 596.736 × 335.664 (H×V) |
| Bezel Area(mm) | 601.6 × 340.15 (H×V) |
| Luminance | 350 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 1.07B 99% Adobe RGB |
| Mass | - |
| Refresh Rate | 60Hz |
| Signal Type | LVDS (4 ch, 10-bit) , 92 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | P270DAN01.0 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 630 × 371.8 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Response | 12 (Typ.)(G to G) ms |
| Work Mode | AHVA, Normally Black, Transmissive |
| Used for | Digital Signage |
| Touchscreen | Without |
