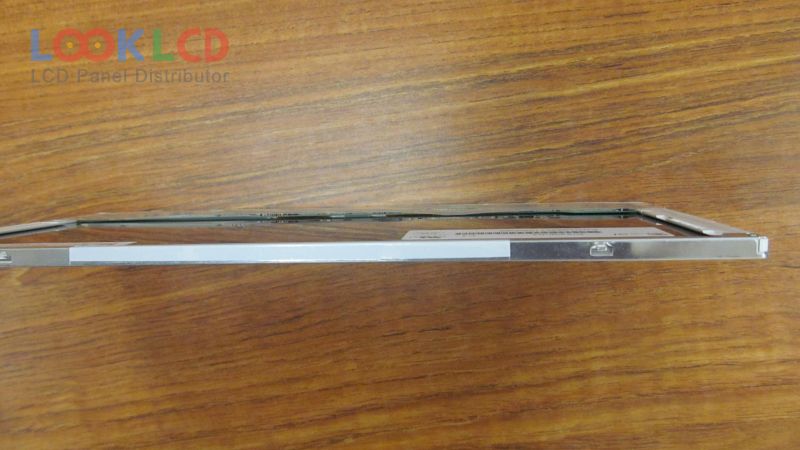

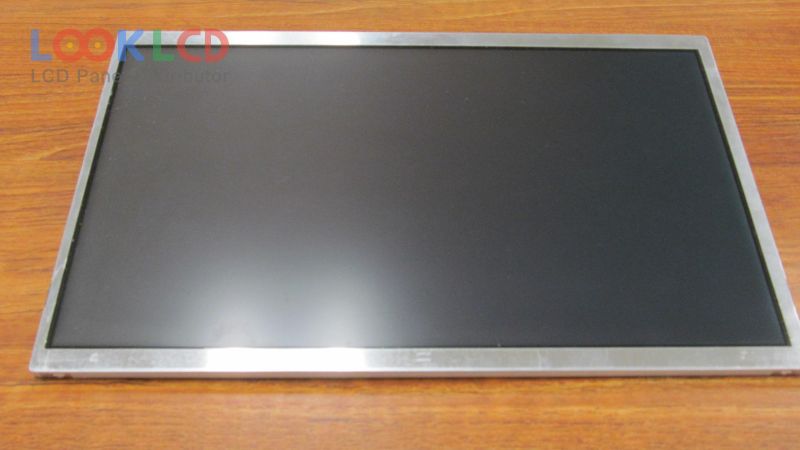

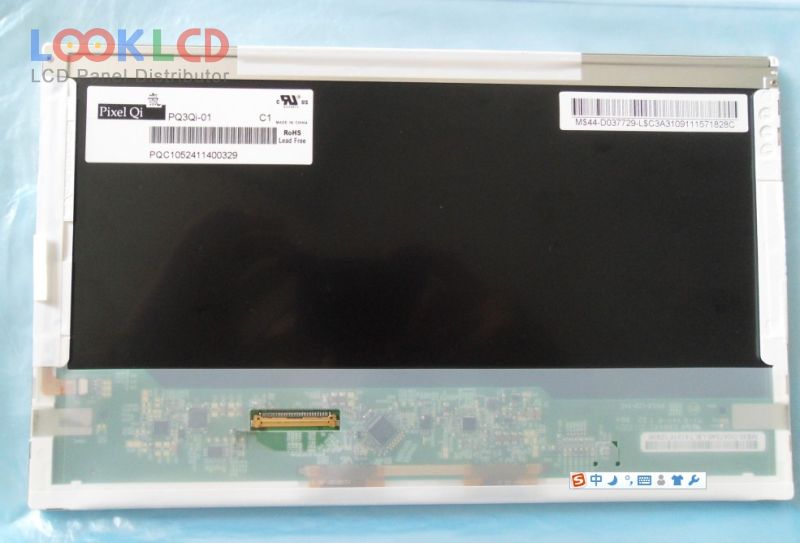

| PartNumber | PQ 3Qi-01 |
| Brand | Pixel Qi |
| Size | 10.1 |
| Application | EBK |
| Resolution | 1024(RGB)×600 , WSVGA |
| Composition | LCM |
| Brightness | 235 cd/m² (Typ.) |
| CR | 100:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | Pixel Qi |
| Panel Model | PQ 3Qi-01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | Normally Black, TM/RF/TF |
| Active Area | 222.72×125.28 mm |
| Outline | 235×143×5.2 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 100 : 1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193140% |
| Response Time | 6.5/13.5 (Typ.)(Tr/Td) |
| Viewing Angle | 30/30/30/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| A101SW02 V1 | AUO | 10.1 | 1024×600 |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| LP101WSA-TLA1 | LG Display | 10.1 | 1024×600 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| PQ 3Qi-01 | Pixel Qi | 10.1 | 1024×600 |
| A060SE02 V2 | AUO | 6.0 | 800×600 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| ED050SC3 | E Ink | 5.0 | 800×600 |
| ED060SC9 | E Ink | 6.0 | 600×800 |
| ED060SCF | E Ink | 6.0 | 600×800 |
| ED060SCM | E Ink | 6.0 | 600×800 |
| ED097OC4 | E Ink | 9.7 | 1200×825 |
| LB060S01-FD01 | LG Display | 6.0 | 800×600 |
| PQ 3Qi-01 | Pixel Qi | 10.1 | 1024×600 |
| TM060SDH01 | Tianma | 6.0 | 800×600 |
