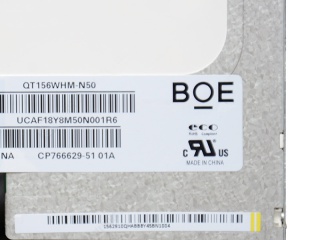

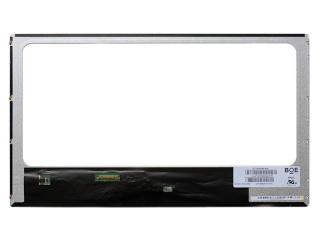

| PartNumber | QT156WHM-N50 |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop Printer Home Appliance |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | BOE |
| Panel Size | 15.6" |
| Display Area | 344.232(W)×193.536(H) mm |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45% NTSC |
| Frequency | 60Hz |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | QT156WHM-N50 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPK1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPB1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| LQ156Z1JW03 | SHARP | 15.6 | 3200×1800 |
| LTN156AT36-D01 | Samsung | 15.6 | 1366×768 |
| LTN156HT01-B01 | Samsung | 15.6 | 1920×1080 |
