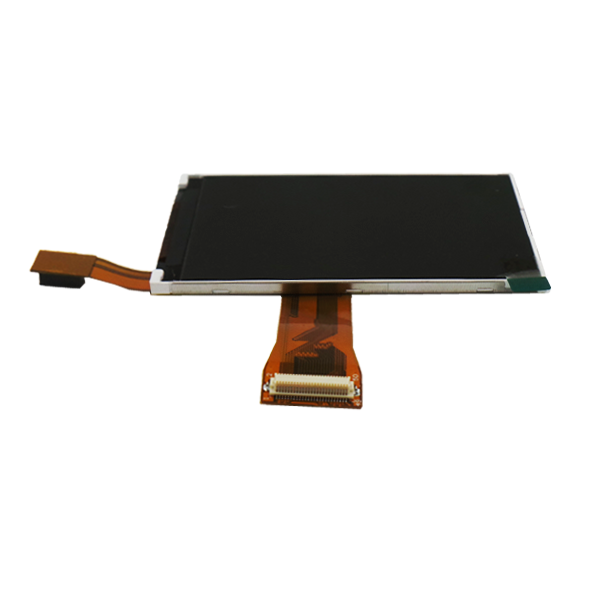

| PartNumber | S032Q10 |
| Brand | CDTECH |
| Size | 3.2 |
| Application | Handheld & PDA |
| Resolution | 240(RGB)×320, QVGA, 127PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 270 cd/m² (Typ.) |
| CR | 350:1 |
| Colors | 262K |
| Backlight | 1S5P |
| Interface | CPU |
| Panel Brand | CDTECH |
| Panel Model | S032Q10 |
| Panel Size | 3.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 47.88(W)×63.84(H) mm |
| Bezel Opening | - |
| Outline Size | 55.04(W)×77.7(H) ×2.5(D) mm |
| Surface | - |
| Contrast Ratio | 350:1 (Typ.) (TM) |
| Viewing Angle | 55/65/65/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 9 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | 262K |
| Lamp Type | 1S5P WLED , 25K hours , Without Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | TBD |
| Signal Interface | CPU , 37 pins FPC |
| Input Voltage | 3.3/3.3V (Max.)(VCC/IOVCC) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
