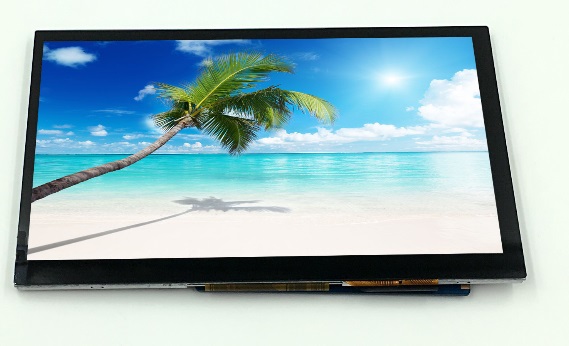

| PartNumber | S101WS07 |
| Brand | CDTECH |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1024×600 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 600:1 |
| Colors | 16.7M |
| Backlight | 3S6P WLED , 25K hours , No Driver |
| Interface | Parallel |
| Manufacturer | CDTECH |
| Screen Size | 10.1 inch |
| Pixel Number | 1024(RGB)×600 (WSVGA) 117PPI |
| Active Area(mm) | 222.72 × 125.28 (H×V) |
| Bezel Area(mm) | 226.34 × 128.1 (H×V) |
| Luminance | 200 cd/m² (Typ.) |
| Viewing Angle | 65/65/55/65 (Typ.)(CR≥10) |
| Good View at | 12 o'clock |
| Color Depth | 16.7M |
| Mass | TBD |
| Refresh Rate | 60Hz |
| Signal Type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Voltage Supply | 3.3/10.85/21/-5.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Model Name | S101WS07 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 235 × 143 × 5.39 (H×V×D) |
| Treatment | - |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Response | 6/20 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Used for | Industrial |
| Touchscreen | Without |
