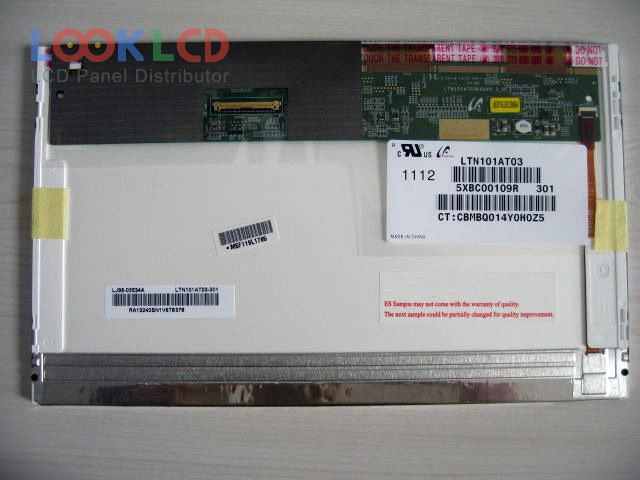

| PartNumber | LTN101AT03-801 |
| Brand | Samsung |
| Size | 10.1 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN101AT03-801 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 222.726×125.222 mm |
| Outline | 232×135.33 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare |
| Contrast Ratio | |
| Display Colors | 262K (6-bit) |
| Response Time | |
| Viewing Angle | 45/45/20/40 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
