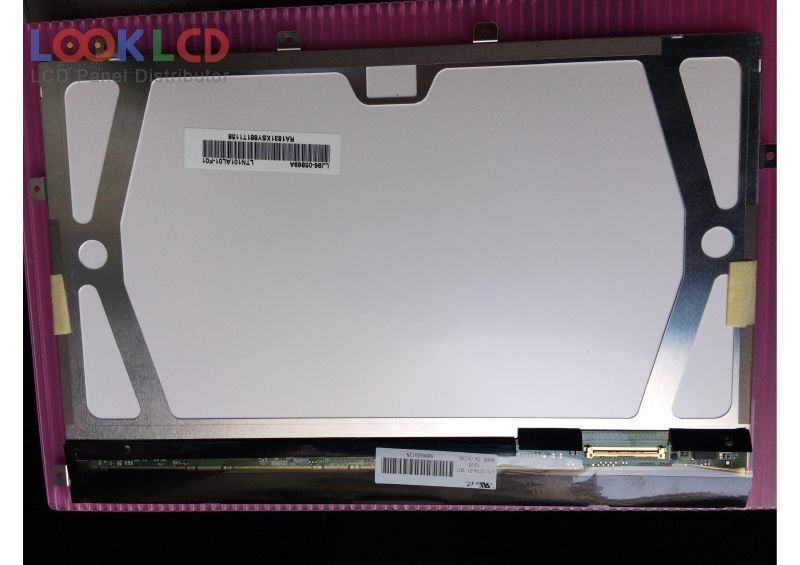

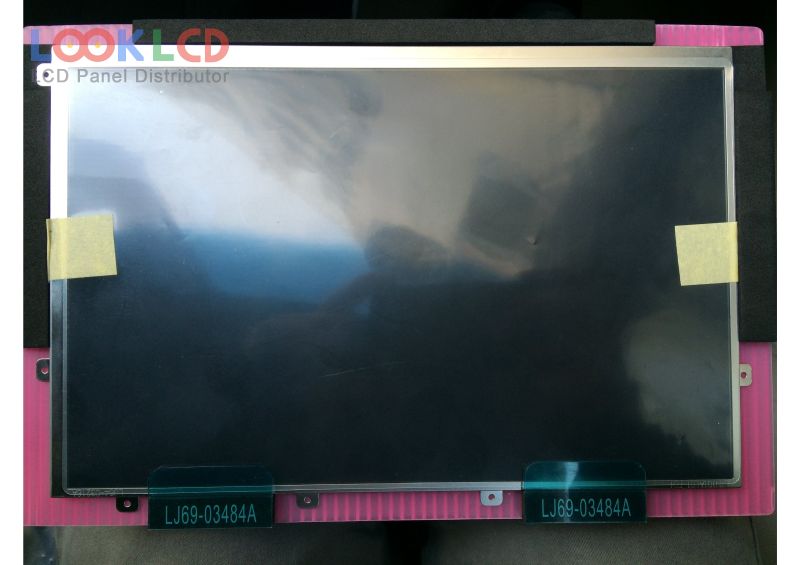

| PartNumber | LTN101AL01-F01 |
| Brand | Samsung |
| Size | 10.1 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN101AL01-F01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | PLS, Normally Black, Transmissive |
| Active Area | 216.96×135.6 mm |
| Outline | 235×149.87×5.4 mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193145% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S6PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
