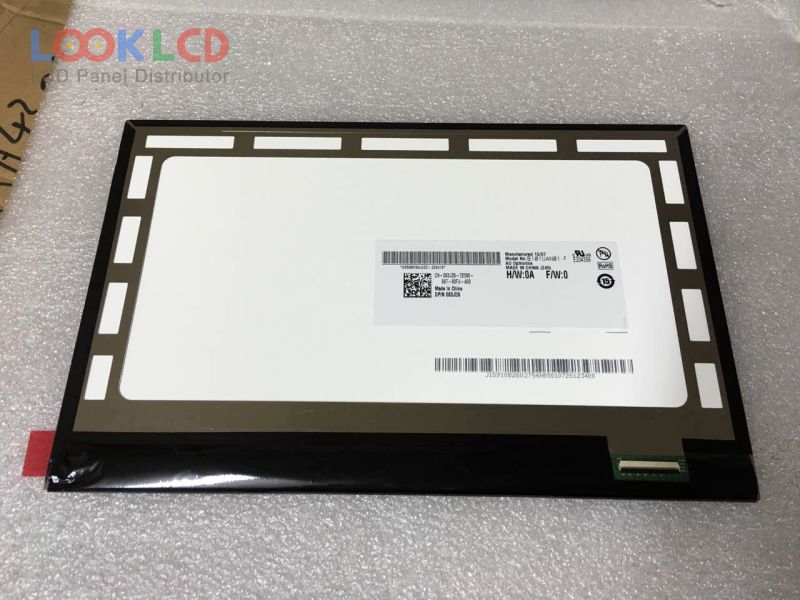

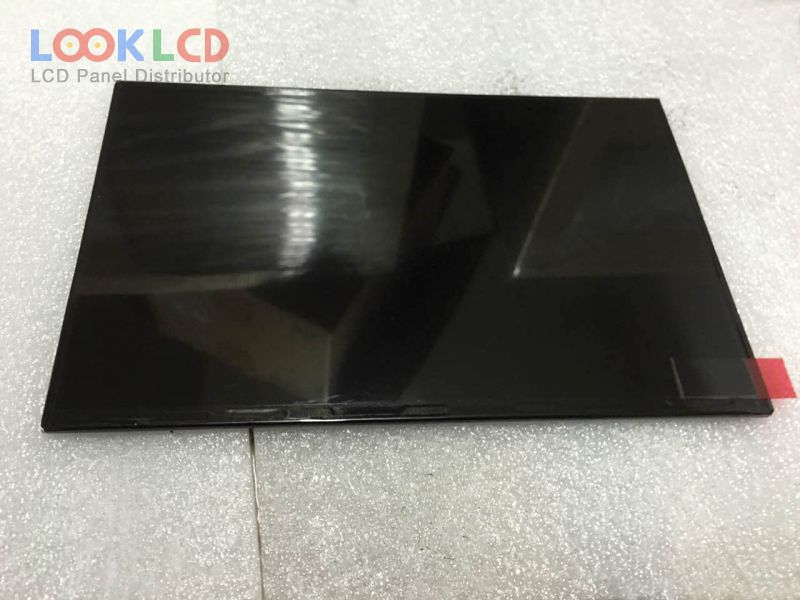

B101UAN01.7 HW0A

B101UAN01.7 HW0A
B101UAN01.7 HW0A
B101UAN01.7 HW0A
B101UAN01.7 HW0A thumb B101UAN01.7 HW0A thumb B101UAN01.7 HW0A thumb
Brand
AUO
Size
10.1
Application
PAD
Resolution
1920×1200
Composition
LCM
Brightness
400
CR
800:1
Colors
16.7M
Backlight
WLED
Interface
MIPI
In Stock
7648
Specifications
PartNumber B101UAN01.7 HW0A
BrandAUO
Size10.1
ApplicationPAD
Resolution1920(RGB)×1200 , WUXGA
CompositionLCM
Brightness400 cd/m² (Typ.)
CR800:1
Colors16.7M
BacklightWLED
InterfaceMIPI
Panel BrandAUO
Panel ModelB101UAN01.7 HW0A
Panel Type a-Si TFT-LCD , LCM
Panel Size10.1 inch
Display ModeAHVA, Normally Black, Transmissive
Active Area216.81×135.5 mm
Outline227.72×147.8×5.35 mm
SurfaceGlare (Haze 0%)
Contrast Ratio800:1 (Typ.)
Display Colors16.7M (8-bit), CIE193150%
Response Time25 (Typ.)(Tr+Td)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
Frequency60Hz
Lamp TypeWLEDEmbedded (LED Driver)

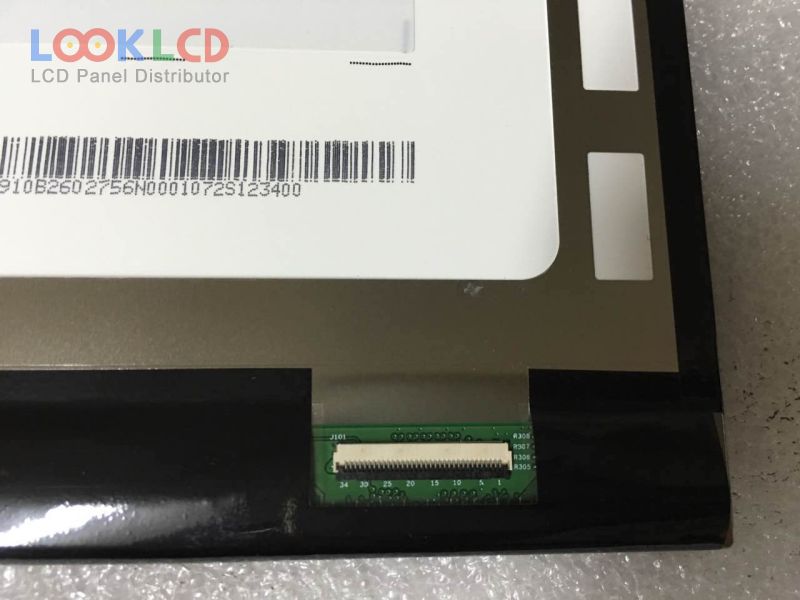

Signal InterfaceMIPI (4 data lanes), 34 pins
Input Voltage3.3V (Typ.)
