| PartNumber | ST5461B03-6 |
| Brand | CSOT |
| Size | 55 |
| Application | TV Sets |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | |
| CR | 4000:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | LVDS |

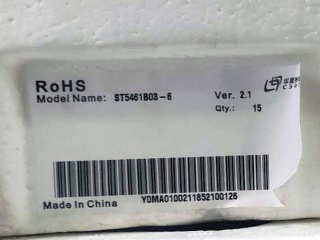

| Model | ST5461B03-6 |
| Diagonal Size | 55 inch |
| Type | a-Si TFT-LCD, CELL |
| Pixel Format | 1920(RGB)×1080 [FHD] 40PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 1209.6(H)×680.4(V) mm |
| Outline Dim. | 1223.6(H)×697.1(V) ×1.35(D) mm |
| Bezel Area | - |
| Treatment | Antiglare (Haze 2%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 7 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | HVA, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 6.5% (Typ.)(with Polarizer) |
| Support Color | 16.7M 72% NTSC |
| Light Source | No B/L |
| Weight | 3.50Kgs (Max.) |
| Designed For | TV Sets |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 6 source + 8 gate chips |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Power Supply | 12.7V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LC550WUB-SCA1 | LG Display | 55 | 1920×1080 |
| LC550WUD-SCA1 | LG Display | 55 | 1920×1080 |
| P550HVN06.0 | AUO | 55 | 1920×1080 |
| ST5461B03-1 | CSOT | 55 | 1920×1080 |
| ST5461B05-1 | CSOT | 55 | 1920×1080 |
| ST5461B05-2 | CSOT | 55 | 1920×1080 |
| ST5461D01-1 | CSOT | 55 | 3840×2160 |
| ST5461D04-2 | CSOT | 55 | 3840×2160 |
| T546HB01 V0 | AUO | 55 | 1920×1080 |
| T546HW01 V1 | AUO | 55 | 1920×1080 |
