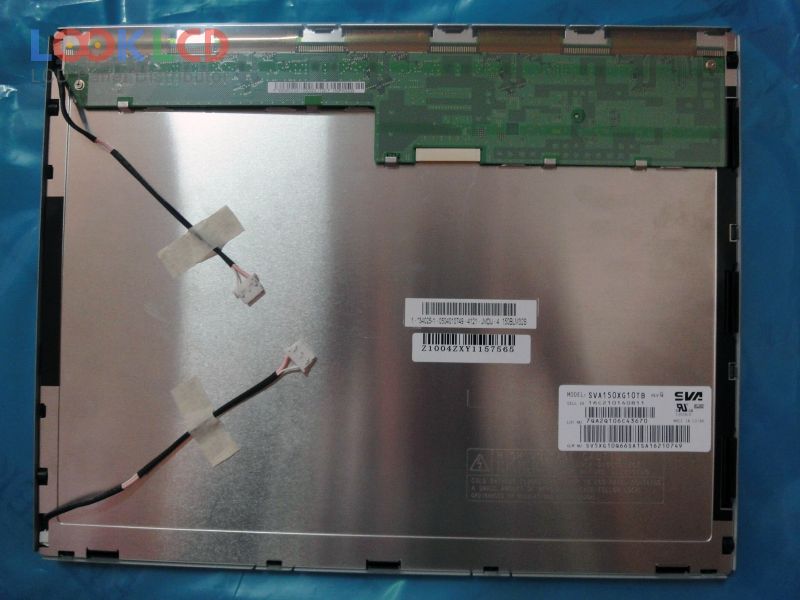

| PartNumber | SVA150XG10TB |
| Brand | SVA-NEC |
| Size | 15.0 |
| Application | DMPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SVA-NEC |
| Panel Model | SVA150XG10TB |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 326.5×253.5×12 mm |
| Surface | |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193160% |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |

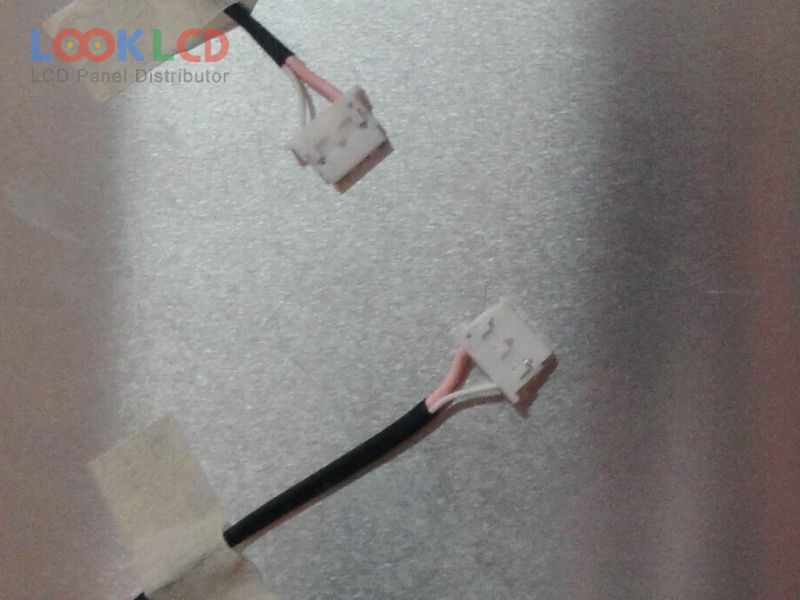

| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| LM185WH1-TLF4 | LG Display | 18.5 | 1366×768 |
| LM190E05-SL02 | LG Display | 19.0 | 1280×1024 |
| LM238WR1-SLA1 | LG Display | 23.8 | 3840×2160 |
| M185XW01 V4 | AUO | 18.5 | 1366×768 |
| M195RTN01.0 | AUO | 19.5 | 1600×900 |
| M215H3-LA1 | Innolux | 21.5 | 1920×1080 |
| MT185GW01 V.4 | Innolux | 18.5 | 1366×768 |
| NL128102BC29-01B | NLT | 19.0 | 1280×1024 |
| P236MWF1 R0 | IVO | 23.6 | 1920×1080 |
| SVA150XG10TB | SVA-NEC | 15.0 | 1024×768 |
