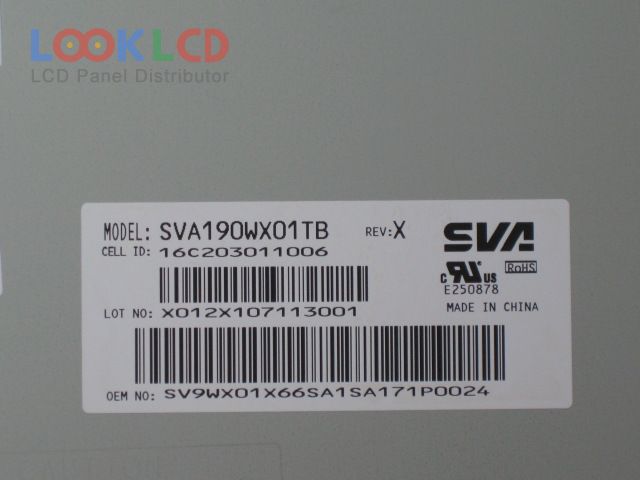

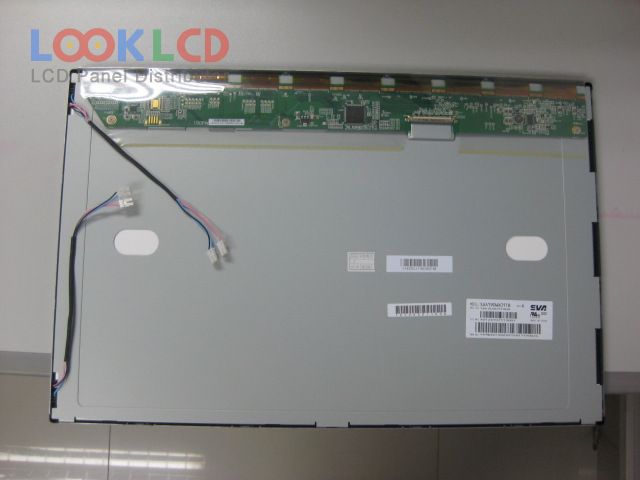

| PartNumber | SVA190WX01TB |
| Brand | SVA-NEC |
| Size | 19.0 |
| Application | DMPC |
| Resolution | 1440(RGB)×900 , WXGA+ |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SVA-NEC |
| Panel Model | SVA190WX01TB |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 19.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 408.24×255.15 mm |
| Outline | 428×278×19 mm |
| Surface | |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
