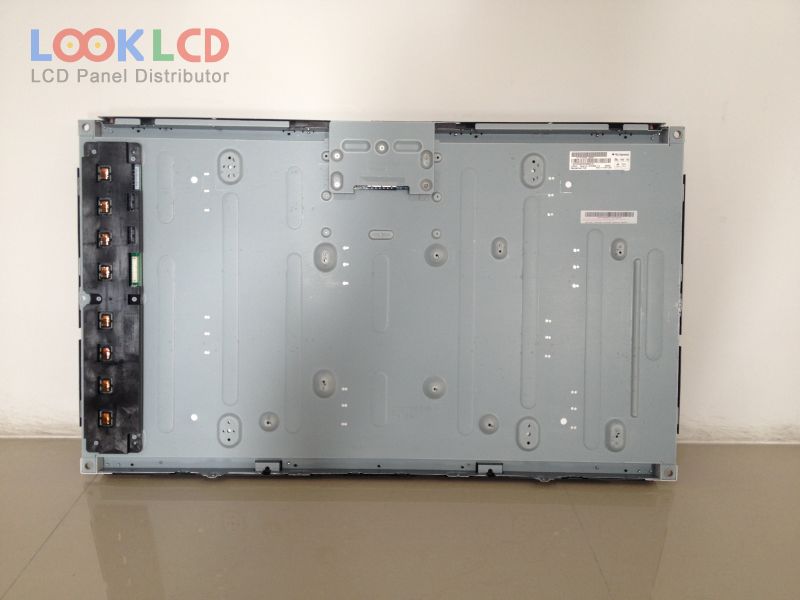

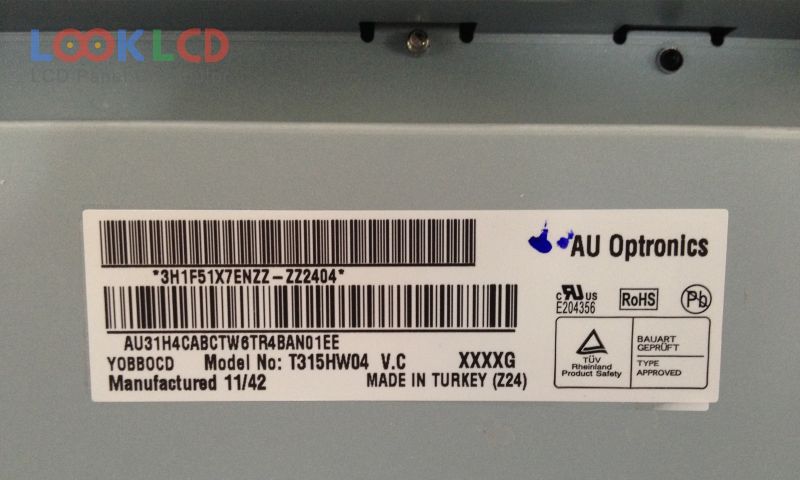

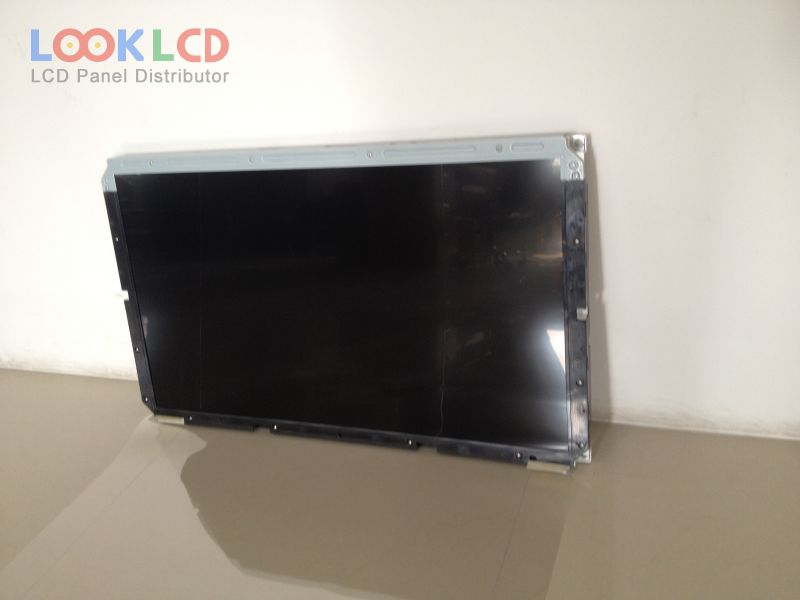

| PartNumber | T315HW04 VC |
| Brand | AUO |
| Size | 31.5 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 5000:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | T315HW04 VC |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 31.5 inch |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Active Area | 698.4×392.85 mm |
| Outline | 760×450×47.9 mm |
| Surface | Antiglare (Haze 2%), Hard coating (3H) |
| Contrast Ratio | 5000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 6.5 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins |
| Input Voltage | 12.0V (Typ.) |
