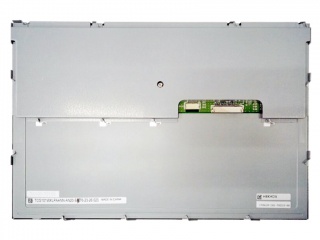

| PartNumber | TCG101WXLPAANN-AN20-SA |
| Brand | Kyocera |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | Kyocera |
| Panel Model | TCG101WXLPAANN-AN20-SA |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 219.96(W)×138.6(H) mm |
| Outline Size | 236(W)×156.8(H) ×9.9(D) mm |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 8/22 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 52% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 500g (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
