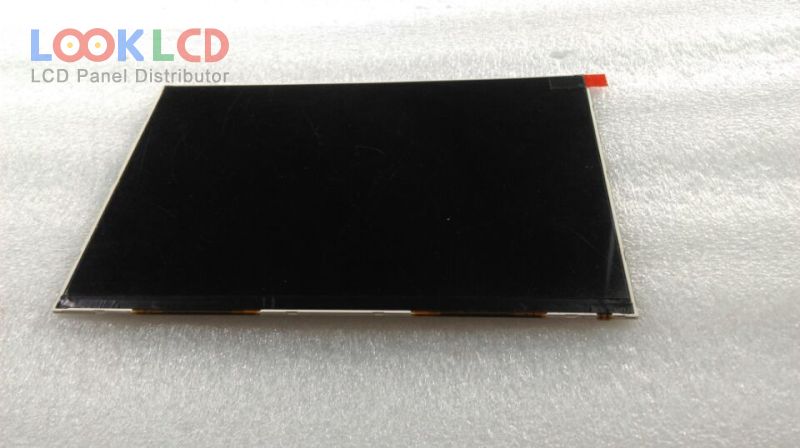

| PartNumber | TFT08925601600 |
| Brand | SEBO |
| Size | 8.9 |
| Application | PAD |
| Resolution | 2560(RGB)×1600 , WQXGA |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 1200:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | SEBO |
| Panel Model | TFT08925601600 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.9 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 192×120 mm |
| Outline | 200.3×132.1×3.43 mm |
| Surface | |
| Contrast Ratio | 1200:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S6PWLEDWithout Driver |
| Signal Interface | MIPI (2 ch, 4 data lanes), 61 pins |
| Input Voltage | 1.8/3.3V (Typ.)(VDDIO/VBAT) |
