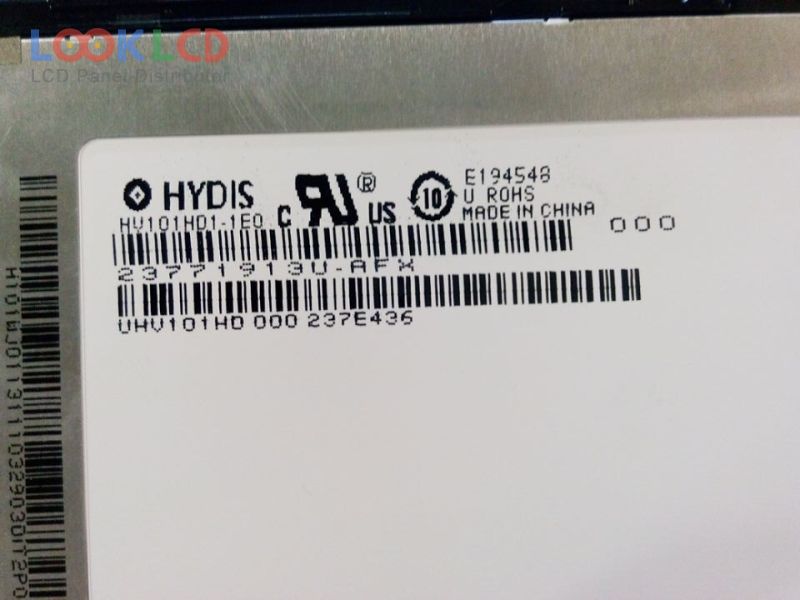

| PartNumber | HV101HD1-1E0 |
| Brand | HYDIS |
| Size | 10.1 |
| Application | PAD |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | HYDIS |
| Panel Model | HV101HD1-1E0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | HFFS, Normally Black, Transmissive |
| Active Area | 223.341×125.568 mm |
| Surface | |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193150% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
