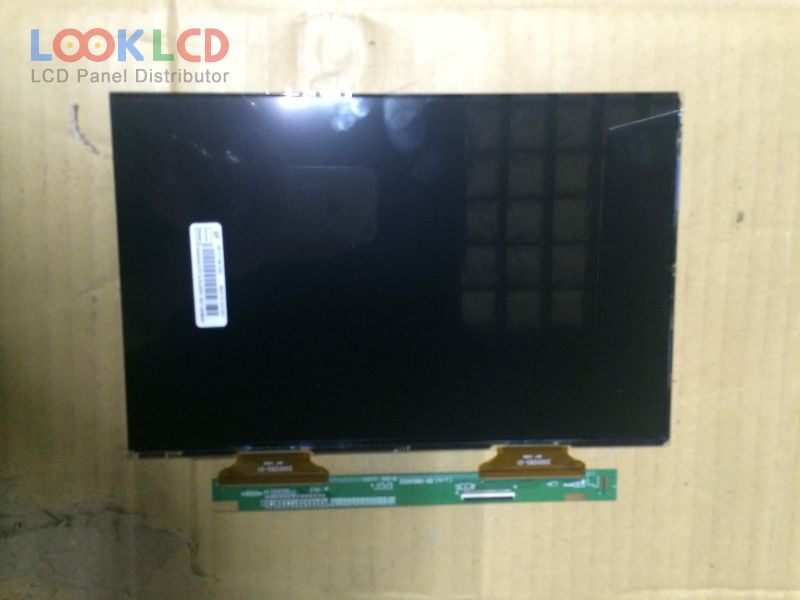

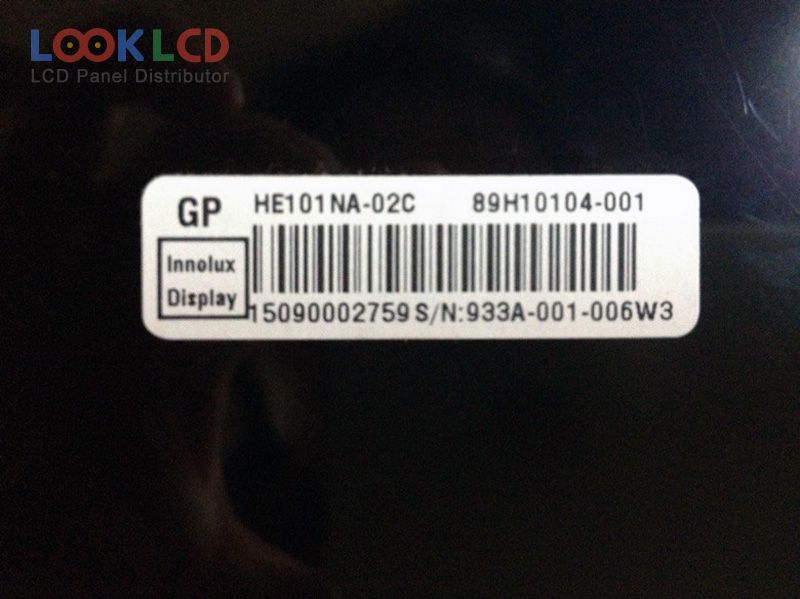

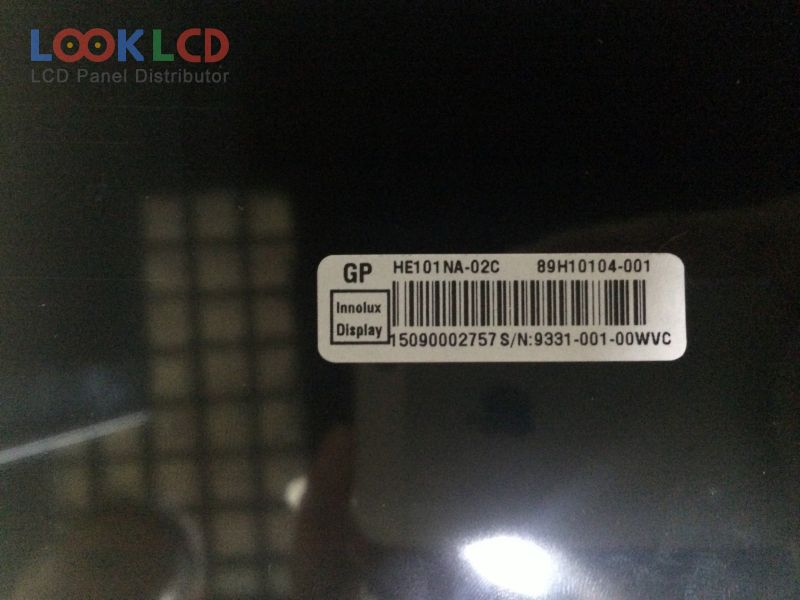

| PartNumber | HE101NA-02C |
| Brand | Innolux |
| Size | 10.1 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | CELL |
| Brightness | 0 |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | TTL |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | HE101NA-02C |
| Panel Type | a-Si TFT-LCD , CELL |
| Panel Size | 10.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 216.96×135.6 mm |
| Outline | 224.21×145×1.43 mm |
| Surface | Glare (Haze 0%) |
| Glass Depth | 0.50+0.50 mm |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 75/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
