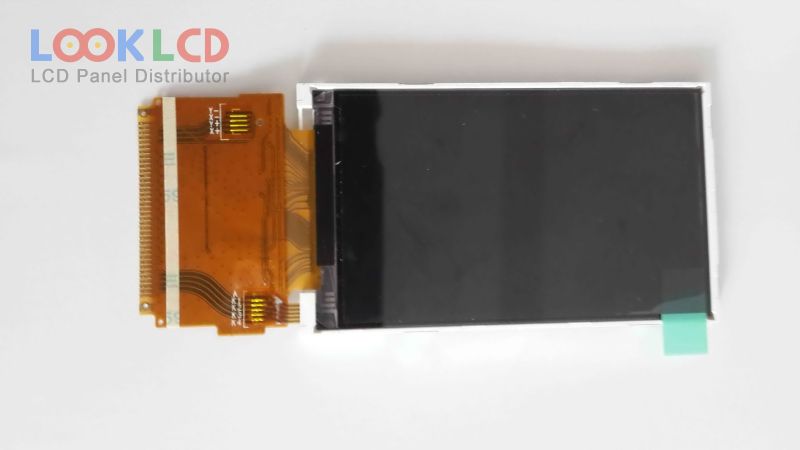

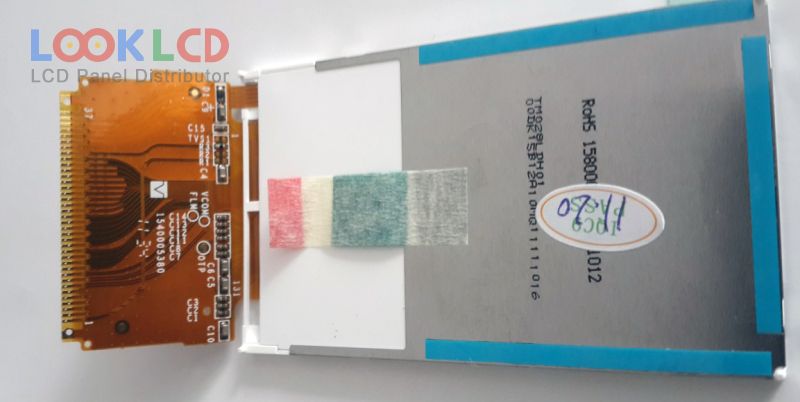

| PartNumber | TM028LDH01 |
| Brand | Tianma |
| Size | 2.8 |
| Application | MPH |
| Resolution | 240(RGB)×400 , WQVGA |
| Composition | LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 450:1 |
| Colors | 65K |
| Backlight | WLED |
| Interface | CPU |
| Panel Brand | TIANMA |
| Panel Model | TM028LDH01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 2.8 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 36.72×61.2 mm |
| Outline | 42.42×72.8 mm |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 450:1 (Typ.) |
| Display Colors | 65K , CIE193152% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 1S4PWLEDWithout Driver |
| Signal Interface | CPU, 37 pins |
| Input Voltage | 2.8/2.8V (Typ.)(IOVCC/VCC) |
