| PartNumber | TM055XDHP10 |
| Brand | Tianma |
| Size | 5.5 |
| Application | MPH |
| Resolution | 540(RGB)×960 , qHD |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | TIANMA |
| Panel Model | TM055XDHP10 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 5.5 inch |
| Display Mode | FFS, Normally Black, Transmissive |
| Active Area | 68.04×120.96 mm |
| Outline | 72.14×130.86×1.95 mm |
| Surface | Antiglare (Haze 42%) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193170% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 80Hz |
| Lamp Type | 5S2PWLEDWithout Driver |

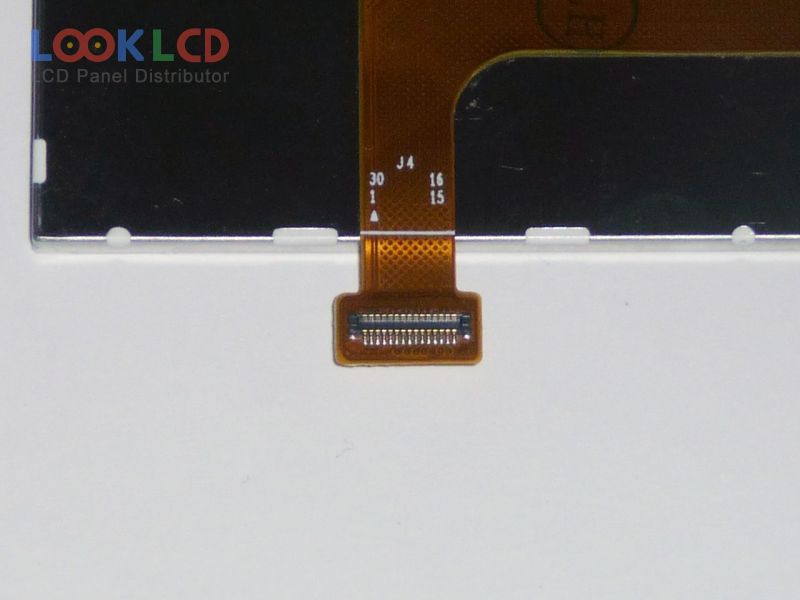

| Signal Interface | MIPI (2 data lanes), 30 pins |
| Input Voltage | 1.8/2.8V (Typ.)(IOVCC/VCC) |
