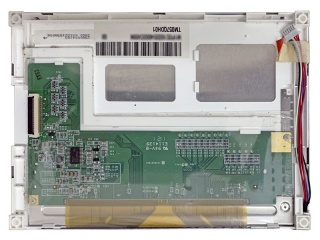

| PartNumber | TM057KDH01-10 |
| Brand | TIANMA |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | 5S3P WLED , 50K hours , No Driver |
| Interface | Parallel |
| Manufacturer | TIANMA |
| Model Name | TM057KDH01-10 |
| Screen Size | 5.7 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 320(RGB)×240 (QVGA) 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | 144 × 104.6 × 12.8 (H×V×D) |
| Bezel Area(mm) | 118.2 × 89.4 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 52% NTSC |
| Mass | 157g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
