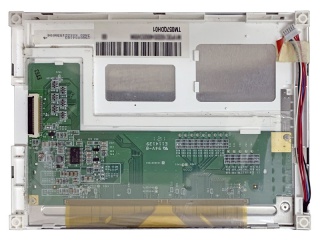

| PartNumber | TM057KDH01-41 |
| Brand | TIANMA |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320(RGB)×240, QVGA, 70PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | 5S3P |
| Interface | Parallel |
| Panel Brand | TIANMA |
| Panel Model | TM057KDH01-41 |
| Panel Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 118.2(W)×89.4(H) mm |
| Outline Size | 144(W)×104.6(H) ×12.8(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | 262K 50% NTSC |
| Lamp Type | 5S3P WLED , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 160g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
