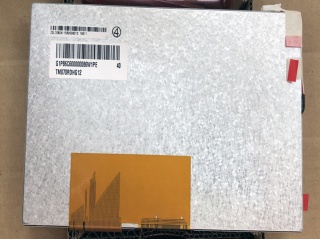

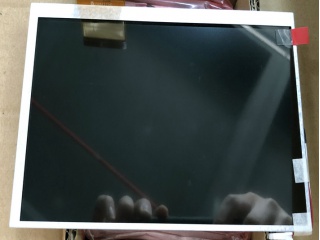

| PartNumber | TM070RDHG12 |
| Brand | TIANMA |
| Size | 7.0 |
| Application | Portable DVD Player |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 500:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | Parallel |
| Model | TM070RDHG12 |
| Diagonal Size | 7.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 134PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 154.08(H)×85.92(V) mm |
| Outline Dim. | 164.9(H)×100(V) ×6(D) mm |
| Bezel Area | 157.08(H)×89.39(V) mm |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 50% NTSC |
| Light Source | WLED [3S7P] , 20K hours , W/O Driver |
| Weight | 165g (Typ.) |
| Designed For | Portable DVD Player Digital Photo Frame |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/10.6/10.6/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
