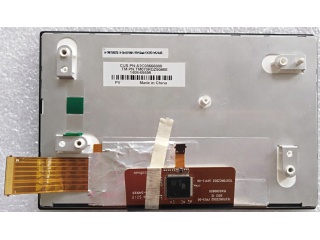

| PartNumber | TM070RDZ50 |
| Brand | TIANMA |
| Size | 7.0 |
| Application | Automotive Display |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 7.0 inch |
| Pixel Format | 800(RGB)×480 [WVGA] 133PPI |
| Active Area | 157.2(H)×82.32(V) mm |
| Luminance | - |
| View Direction | - |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Support Color | 262K |
| Weight | - |
| Frame Rate | 60Hz |
| Model | TM070RDZ50 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | - |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED |
| Designed For | Automotive Display |
| Touch Panel | PCAP |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
