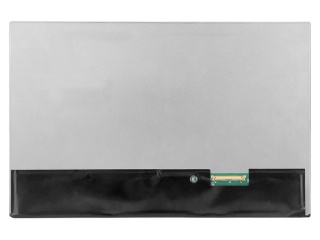

| PartNumber | TM101JDHG38 |
| Brand | TIANMA |
| Size | 10.1 |
| Application | Industrial Medical I |
| Resolution | 1280×800 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 262K/16.7M |
| Backlight | 6S5P WLED , 30K hours , With LED Driver |
| Interface | LVDS |
| Manufacturer | TIANMA |
| Model Name | TM101JDHG38 |
| Screen Size | 10.1 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.96 × 135.6 (H×V) |
| Outline(mm) | 231.22 × 150.6 × 6.6 (H×V×D) |
| Bezel Area(mm) | 219.96 × 138.6 (H×V) |
| Treatment | Hard coating |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Mass | 276g |
| Used for | Industrial Medical Imaging VOIP Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , Connector 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
