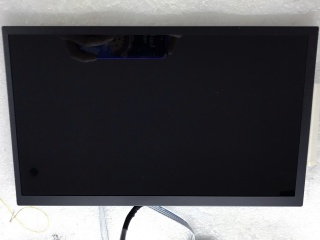

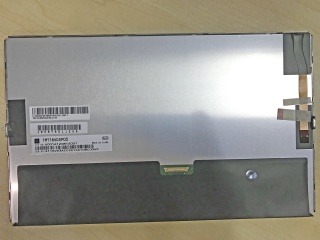

| PartNumber | TM116VDSP03 |
| Brand | TIANMA |
| Size | 11.6 |
| Application | Industrial Outdoor H |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | 9S6P WLED , 50K hours , No Driver |
| Interface | LVDS |
| Manufacturer | TIANMA |
| Model Name | TM116VDSP03 |
| Screen Size | 11.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 190PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 256.32 × 144.18 (H×V) |
| Outline(mm) | 273.5 × 166.5 × 11.5 (H×V×D) |
| Bezel Area(mm) | 259.31 × 148.73 (H×V) |
| Treatment | Hard coating |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Mass | TBD |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 3.3/10.7/20/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
