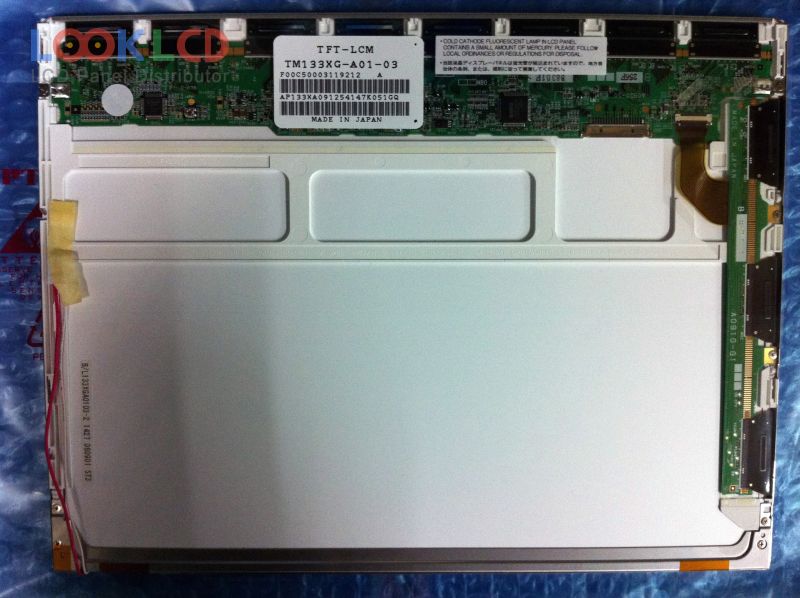

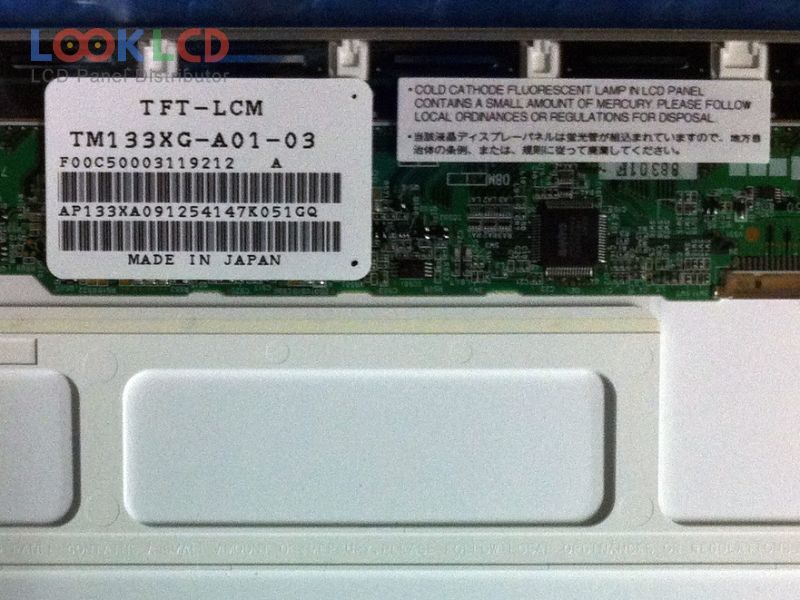

| PartNumber | TM133XG-A01-03 |
| Brand | SANYO |
| Size | 13.3 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | |
| CR | |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SANYO |
| Panel Model | TM133XG-A01-03 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 13.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 270.336×202.752 mm |
| Outline | 284×214.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare |
| Contrast Ratio | |
| Display Colors | 262K (6-bit) |
| Response Time | 32/13 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
