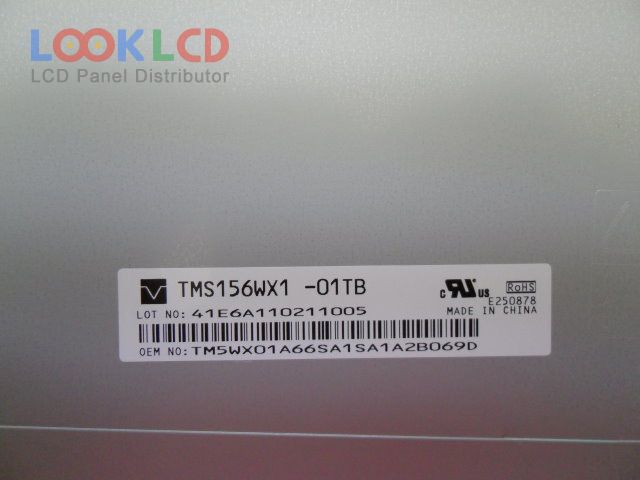

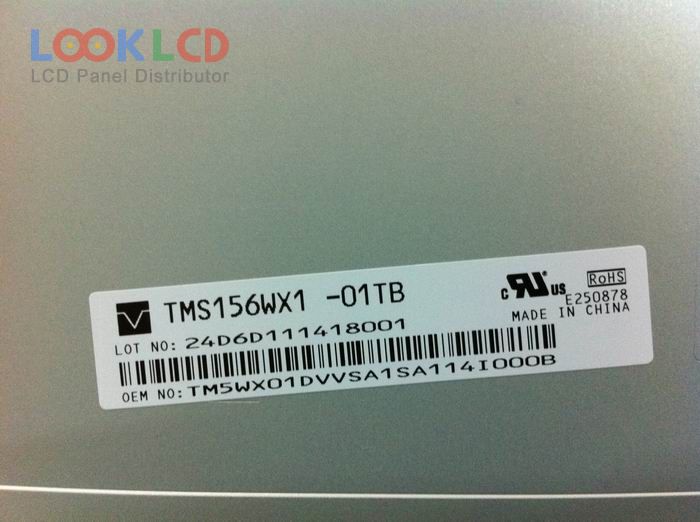

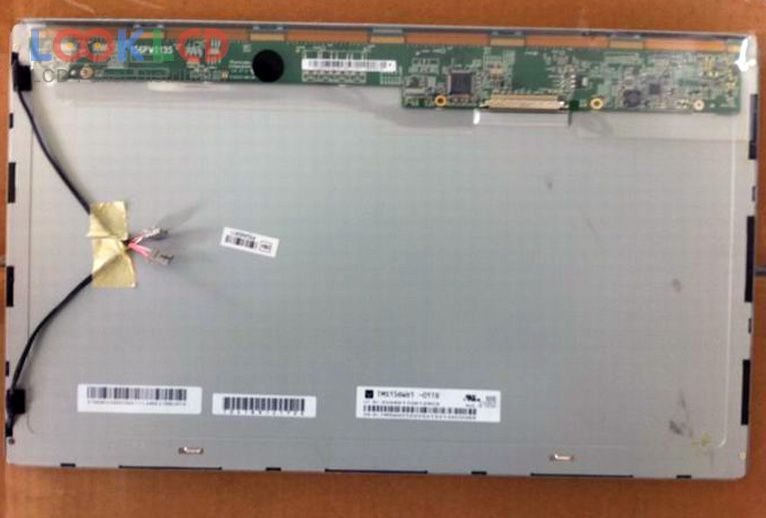

| PartNumber | TMS156WX1-01TB |
| Brand | Tianma |
| Size | 15.6 |
| Application | DMPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | AVIC |
| Panel Model | TMS156WX1-01TB 4 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.232×193.536 mm |
| Outline | 363.8×215.9×14.8 mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193160% |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
